TPS61080DRCT
  • Share:

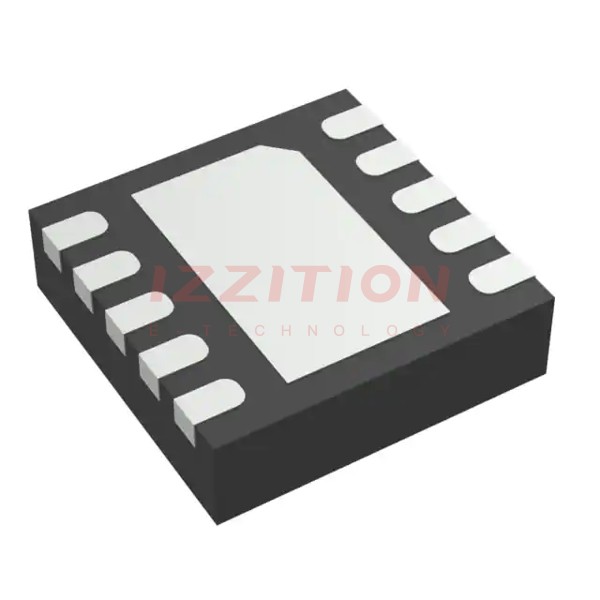

Texas Instruments TPS61080DRCT

Manufacturer No:
TPS61080DRCT
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC REG BOOST ADJ 500MA 10VSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TPS61080DRCT is a high-voltage DC/DC boost converter produced by Texas Instruments. This integrated circuit is designed to provide efficient voltage boosting with an integrated switch, making it suitable for a variety of power management applications. The device operates with input voltages ranging from 2.5V to 6V and can output voltages up to 27V, making it versatile for different system requirements.

Key Specifications

ParameterValue
Input Voltage Range2.5V to 6V
Output Voltage RangeUp to 27V
Switch Current0.5A / 1.3A
Switching Frequency1.2MHz
Package TypeVSON-10-EP (3x3)
Operating Temperature Range-40°C to 85°C
Integrated Power DiodeYes

Key Features

  • High-efficiency DC/DC boost converter with integrated switch.
  • Wide input voltage range: 2.5V to 6V.
  • Output voltage up to 27V.
  • High switching frequency of 1.2MHz.
  • Integrated power diode for reduced external component count.
  • Compact VSON-10-EP (3x3) package.
  • Operating temperature range from -40°C to 85°C.

Applications

The TPS61080DRCT is suitable for various applications requiring efficient voltage boosting, such as:

  • Portable electronics and battery-powered devices.
  • Automotive systems.
  • Industrial power supplies.
  • LED drivers and lighting systems.
  • Medical devices and equipment.

Q & A

  1. What is the input voltage range of the TPS61080DRCT?
    The input voltage range is from 2.5V to 6V.
  2. What is the maximum output voltage of the TPS61080DRCT?
    The maximum output voltage is up to 27V.
  3. What is the switching frequency of the TPS61080DRCT?
    The switching frequency is 1.2MHz.
  4. Does the TPS61080DRCT have an integrated power diode?
    Yes, it has an integrated power diode.
  5. What is the package type of the TPS61080DRCT?
    The package type is VSON-10-EP (3x3).
  6. What is the operating temperature range of the TPS61080DRCT?
    The operating temperature range is from -40°C to 85°C.
  7. What are some typical applications for the TPS61080DRCT?
    Typical applications include portable electronics, automotive systems, industrial power supplies, LED drivers, and medical devices.
  8. Is the TPS61080DRCT RoHS compliant?
    Yes, the TPS61080DRCT is RoHS compliant.
  9. What is the maximum switch current of the TPS61080DRCT?
    The maximum switch current is 0.5A / 1.3A.
  10. Where can I find the datasheet for the TPS61080DRCT?
    The datasheet can be found on the Texas Instruments website or through distributors like Digi-Key and LCSC.

Product Attributes

Function:Step-Up
Output Configuration:Positive
Topology:Boost
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):2.5V
Voltage - Input (Max):6V
Voltage - Output (Min/Fixed):2.5V
Voltage - Output (Max):27V
Current - Output:500mA (Switch)
Frequency - Switching:600kHz, 1.2MHz
Synchronous Rectifier:No
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:10-VFDFN Exposed Pad
Supplier Device Package:10-VSON (3x3)
