Overview

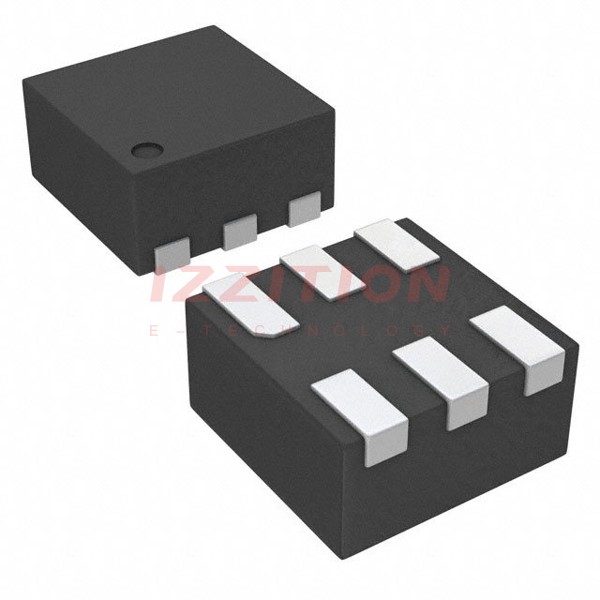

The TPS3703-Q1 device, specifically the TPS3703B3080DSERQ1 model, is an integrated overvoltage (OV) and undervoltage (UV) monitor or reset IC produced by Texas Instruments. It is packaged in the industry’s smallest 6-pin DSE (WSON) package, making it ideal for systems operating on low-voltage supply rails with narrow margin supply tolerances. This highly accurate voltage supervisor is designed to prevent false reset signals through low threshold hysteresis, internal glitch immunity, and noise filters. The device is AEC-Q100 qualified for automotive applications, with a temperature range of –40°C to +125°C, and is functional safety-capable.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Package | WSON (DSE) | - |
| Pins | 6 | - |
| Operating Temperature Range | –40 to 125 | °C |
| Input Voltage Range | 1.7 V to 5.5 V | V |
| Undervoltage Lockout (UVLO) | 1.7 V | V |
| Quiescent Current (Max) | 7 µA | A |
| Threshold Accuracy (Typical) | ± 0.25% | % |
| Threshold Accuracy (–40°C to +125°C) | ± 0.7% | % |
| Fixed Window Threshold Levels | 50-mV steps from 500 mV to 1.3 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 2.9 V, 3.3 V, 5 V | V |
| Time Delay Options | 50 µs, 1 ms, 5 ms, 10 ms, 20 ms, 100 ms, 200 ms | s |
| Programmable Time Delay | With a single external capacitor | - |
| ESD Ratings (HBM) | ±2000 V | V |
| ESD Ratings (CDM) | C7B | - |
Key Features
- AEC-Q100 qualified for automotive applications with a temperature grade 1: –40°C to +125°C.
- Functional Safety-Capable with documentation available to aid in functional safety system design.
- High threshold accuracy: ± 0.25% (typical) and ± 0.7% over the operating temperature range.
- Fixed window threshold levels and user-adjustable voltage threshold levels.
- Internal glitch immunity and hysteresis to prevent false resets.
- Fixed time delay options and programmable time delay with a single external capacitor.
- Open-drain active low UV and OV monitor with RESET voltage latching output mode.
- No external resistors required for setting overvoltage and undervoltage reset thresholds, optimizing accuracy, cost, and solution size.
- Low quiescent current: 7 µA (Max).
Applications
- Advanced Driver Assistance System (ADAS)
- ADAS domain controller
- Automotive infotainment and cluster
- Digital cockpit
- Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV) systems.
Q & A
- What is the TPS3703-Q1 device?
The TPS3703-Q1 is an integrated overvoltage (OV) and undervoltage (UV) monitor or reset IC in a 6-pin DSE package.
- What are the operating temperature ranges for the TPS3703-Q1?
The device operates from –40°C to +125°C).
- What is the input voltage range for the TPS3703-Q1?
The input voltage range is from 1.7 V to 5.5 V).
- What is the quiescent current of the TPS3703-Q1?
The quiescent current is 7 µA (Max)).
- What are the threshold accuracy specifications for the TPS3703-Q1?
The threshold accuracy is ± 0.25% (typical) and ± 0.7% over the operating temperature range).
- Does the TPS3703-Q1 require external resistors for setting thresholds?
No, the device does not require any external resistors for setting overvoltage and undervoltage reset thresholds).
- What are the available time delay options for the TPS3703-Q1?
The device offers fixed time delay options of 50 µs, 1 ms, 5 ms, 10 ms, 20 ms, 100 ms, and 200 ms, as well as a programmable time delay with a single external capacitor).
- What are the ESD ratings for the TPS3703-Q1?
The device has an ESD rating of ±2000 V (HBM) and C7B (CDM)).
- What are some typical applications of the TPS3703-Q1?
Typical applications include ADAS, ADAS domain controllers, automotive infotainment and cluster, digital cockpit, and HEV/EV systems).
- Is the TPS3703-Q1 suitable for automotive applications?
