Overview

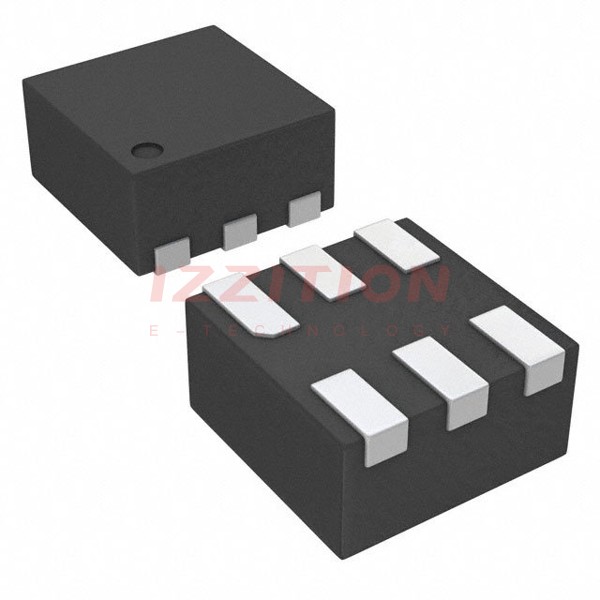

The TPS3703A5180DSERQ1 is an integrated overvoltage (OV) and undervoltage (UV) monitor or reset IC produced by Texas Instruments. This device is designed for systems operating on low-voltage supply rails with narrow margin supply tolerances. It is highly accurate and features internal glitch immunity and noise filters to prevent false reset signals. The TPS3703A5180DSERQ1 is packaged in a 6-pin WSON (1.5 mm x 1.5 mm) package, making it one of the industry’s smallest solutions for voltage supervision. It is AEC-Q100 Grade 1 qualified, making it suitable for automotive applications.
Key Specifications
| Parameter | Value |
|---|---|
| Package | 6-pin WSON (1.5 mm x 1.5 mm) |
| Supply Voltage Range | Up to 5.5 V |
| UV Threshold Options | Available in UV threshold only |
| Window Tolerance | ±3% to ±7% |
| Time Delay Options | 50 µs, 1 ms, 5 ms, 10 ms, 20 ms, 100 ms, 200 ms |
| Programmable Time Delay | With a single external capacitor |
| Output Type | Open-drain active low UV and OV monitor |
| Quiescent Current | Typical 4.5 µA |
| Junction Temperature Range | -40°C to 125°C |
| Thermal Resistance (RθJA) | 184.2 °C/W |
Key Features
- User-adjustable voltage threshold levels
- Internal glitch immunity and hysteresis to prevent false reset signals
- No external resistors required for setting overvoltage and undervoltage reset thresholds
- Low typical quiescent current of 4.5 µA
- RESET voltage latching output mode
- Separate SENSE input pin and VDD pin for redundancy in high-reliability systems
- Capacitor Time (CT) pin for selecting or adjusting reset time delays
Applications
- Advanced driver assistance system (ADAS)
- ADAS domain controller
- Automotive infotainment and cluster
- Digital cockpit
- Hybrid electric vehicle (HEV) and electric vehicle (EV) systems
Q & A
- What is the TPS3703A5180DSERQ1 used for? The TPS3703A5180DSERQ1 is used for overvoltage and undervoltage detection and reset in low-voltage supply rail systems.
- What package type does the TPS3703A5180DSERQ1 come in? It comes in a 6-pin WSON (1.5 mm x 1.5 mm) package.
- What are the available time delay options for the TPS3703A5180DSERQ1? The available time delay options are 50 µs, 1 ms, 5 ms, 10 ms, 20 ms, 100 ms, and 200 ms, with a programmable option using an external capacitor.
- Does the TPS3703A5180DSERQ1 require external resistors for setting thresholds? No, it does not require external resistors for setting overvoltage and undervoltage reset thresholds.
- What is the typical quiescent current of the TPS3703A5180DSERQ1? The typical quiescent current is 4.5 µA.
- What are some of the key applications of the TPS3703A5180DSERQ1? Key applications include ADAS, ADAS domain controllers, automotive infotainment and cluster, digital cockpit, and HEV/EV systems.
- Is the TPS3703A5180DSERQ1 qualified for automotive use? Yes, it is AEC-Q100 Grade 1 qualified.
- What is the junction temperature range of the TPS3703A5180DSERQ1? The junction temperature range is -40°C to 125°C.
- How does the TPS3703A5180DSERQ1 handle voltage glitches? It features internal glitch immunity and hysteresis to prevent false reset signals due to voltage glitches.
- Can the reset time delay be adjusted on the TPS3703A5180DSERQ1? Yes, the reset time delay can be adjusted using a single external capacitor connected to the CT pin.
