Overview
The TPD4S014DSQR is a highly integrated USB port protection device manufactured by Texas Instruments. Designed for safeguarding USB ports, this component is categorized as a ESD protection and power switch IC. It is specifically tailored for applications requiring robust protection against electrostatic discharge (ESD), overvoltage, and overcurrent. The TPD4S014DSQR is ideal for use in consumer electronics, industrial systems, and automotive applications where USB connectivity is critical. Its compact design, high reliability, and advanced protection features make it a competitive choice in the market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| ESD Protection | ±8 | kV | IEC 61000-4-2 Level 4 |
| Operating Voltage | 0 to 5.5 | V | |
| Current Limit | 0.5 | A | |

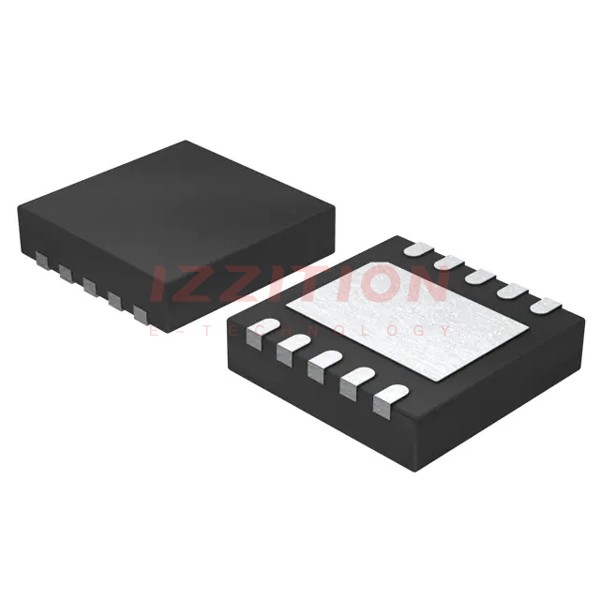

| Package | WSON-10 | ||
| Operating Temperature | -40 to 85 | °C | |
| Integrated Features | ESD Protection, Overcurrent Protection, Overvoltage Protection |
Key Features
- Comprehensive ESD protection up to ±8 kV (IEC 61000-4-2 Level 4).
- Integrated overcurrent and overvoltage protection for enhanced USB port safety.
- Compact WSON-10 package for space-constrained designs.
- Wide operating voltage range (0 to 5.5 V) for versatile applications.
- Robust performance in harsh environments with an operating temperature range of -40 to 85°C.
Applications
The TPD4S014DSQR is widely used in various industries, including:
- Consumer Electronics: Protects USB ports in smartphones, tablets, and laptops.
- Industrial Systems: Ensures reliable USB connectivity in industrial automation and control systems.
- Automotive Electronics: Safeguards USB interfaces in infotainment systems and diagnostic tools.
Q & A
1. What is the ESD protection level of the TPD4S014DSQR?
The TPD4S014DSQR provides ESD protection up to ±8 kV, compliant with IEC 61000-4-2 Level 4.
2. What is the operating voltage range?
The operating voltage range is 0 to 5.5 V.
3. Does it include overcurrent protection?
Yes, it includes overcurrent protection with a current limit of 0.5 A.
4. What package does the TPD4S014DSQR use?
It is available in a WSON-10 package.
5. What is the operating temperature range?
The operating temperature range is -40 to 85°C.
6. Is it suitable for automotive applications?
Yes, it is suitable for automotive applications, particularly for USB interfaces in infotainment systems.
7. Can it be used in industrial systems?
Yes, it is designed for use in industrial systems requiring reliable USB port protection.
8. What are the key integrated features?
The key integrated features include ESD protection, overcurrent protection, and overvoltage protection.
9. Is it compatible with USB 2.0 and USB 3.0?
Yes, it is compatible with both USB 2.0 and USB 3.0 standards.
10. Where can I find the official datasheet?
The official datasheet can be found on the Texas Instruments website or authorized distributors like Digi-Key and Mouser.
