Overview
The TMS470R1A288PGET is a 16/32-Bit RISC Flash Microcontroller produced by Texas Instruments. This microcontroller is part of the TMS470 series and is based on the ARM7TDMI core. It is designed to provide a high level of performance and flexibility, making it suitable for a wide range of applications, particularly in automotive and industrial control systems.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 16/32-Bit RISC Flash Microcontroller |
| Core | ARM7TDMI |
| Clock Speed | 48 MHz |
| Flash Memory | 288 KB (288K x 8) |

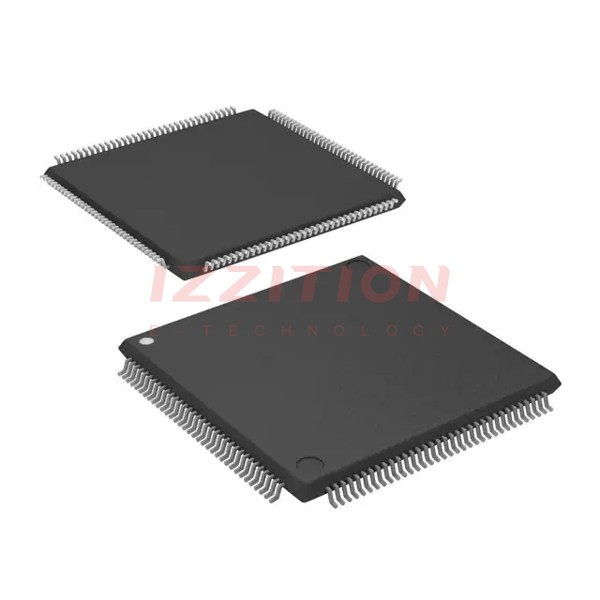

| Package Type | 144-LQFP (20x20 mm) |
| Operating Voltage | 1.8V / 3.3V |
Key Features
- High-performance ARM7TDMI core
- 288 KB of on-chip flash memory
- Support for both 1.8V and 3.3V operating voltages
- 144-pin LQFP package
- Integrated peripherals such as timers, serial communication interfaces, and analog-to-digital converters
- Low power consumption and robust security features
Applications
The TMS470R1A288PGET microcontroller is widely used in various applications, including:
- Automotive systems: engine control, transmission control, and body electronics.
- Industrial control systems: motor control, power management, and automation.
- Consumer electronics: appliances, gaming devices, and other embedded systems.
- Medical devices: diagnostic equipment and patient monitoring systems.
Q & A
- What is the core architecture of the TMS470R1A288PGET microcontroller?
The TMS470R1A288PGET is based on the ARM7TDMI core. - What is the clock speed of the TMS470R1A288PGET?
The clock speed is 48 MHz. - How much flash memory does the TMS470R1A288PGET have?
The microcontroller has 288 KB of on-chip flash memory. - What is the package type of the TMS470R1A288PGET?
The package type is 144-LQFP (20x20 mm). - What are the operating voltage ranges for the TMS470R1A288PGET?
The operating voltage ranges are 1.8V and 3.3V. - What are some common applications for the TMS470R1A288PGET?
Common applications include automotive systems, industrial control systems, consumer electronics, and medical devices. - Does the TMS470R1A288PGET support low power consumption?
Yes, it is designed with low power consumption in mind. - Are there integrated peripherals in the TMS470R1A288PGET?
Yes, it includes integrated peripherals such as timers, serial communication interfaces, and analog-to-digital converters. - Where can I find detailed specifications for the TMS470R1A288PGET?
Detailed specifications can be found in the datasheet available on Texas Instruments' official website or through distributors like Digi-Key and AiPCBA. - Is the TMS470R1A288PGET suitable for high-performance applications?
Yes, it is designed to provide high performance and is suitable for demanding applications.
