Overview
The TMS320C6415EGLZA5E0 is a fixed-point digital signal processor (DSP) from Texas Instruments, part of the C64x family. This processor is designed for high-performance applications requiring intensive digital signal processing. It features a robust set of peripherals and a powerful CPU core, making it suitable for various communication, industrial, and multimedia systems.
Key Specifications
| Specification | Details |
|---|---|
| Processor Type | Fixed-Point Digital Signal Processor |
| CPU Frequency | Up to 720 MHz |
| Cache Memory | 16K-Byte L1 Program Cache, 16K-Byte L1 Data Cache, 1024K-Byte L2 Unified Mapped RAM/Cache |
| External Memory Interfaces | 64-bit EMIFA, 16-bit EMIFB |
| Peripheral Components | EDMA (64 independent channels), HPI (32- or 16-bit), PCI (32-bit), McBSPs (3), UTOPIA (8-bit mode), 32-Bit Timers (3), GPIO (16 pins) |

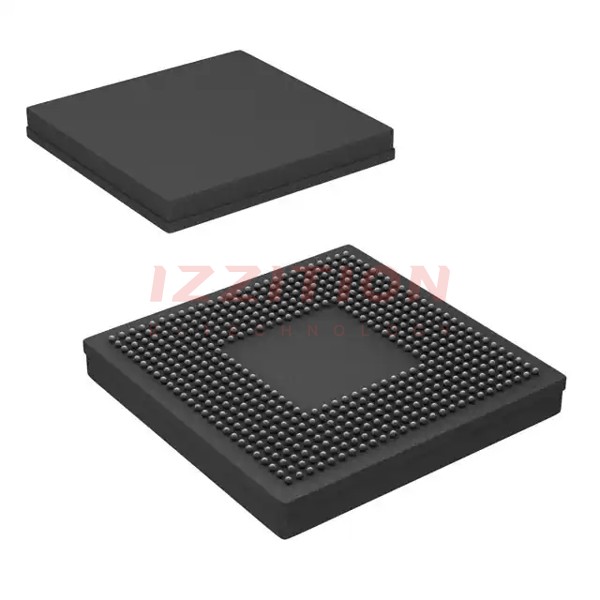

| Package Type | 532-Pin Ball Grid Array (BGA) |
| Voltage | Core: 1.2 V, I/O: 3.3 V |
Key Features
- High-Performance CPU: Supports up to 720 MHz clock frequency with a powerful VelociTI.2 instruction set architecture.
- Advanced Cache Architecture: Includes Level 1 program and data caches and a Level 2 unified mapped RAM/cache.
- Peripheral Set: Features multiple multichannel buffered serial ports (McBSPs), a user-configurable host-port interface (HPI), a PCI interface, and a UTOPIA interface for ATM applications.
- External Memory Interfaces: Supports glueless interfaces to various synchronous and asynchronous memories.
- Enhanced DMA Controller: 64 independent channels for efficient data transfer.
- General-Purpose Timers and GPIO: Three 32-bit general-purpose timers and 16 GPIO pins for flexible system control.
Applications
- Telecommunications: Suitable for T1/E1, MVIP, SCSA framers, and other communication systems.
- Industrial Automation: Used in control systems, data acquisition, and real-time processing applications.
- Multimedia Systems: Applicable in audio and video processing, including codecs and other multimedia devices.
- Embedded Systems: Ideal for various embedded applications requiring high-performance DSP capabilities.
Q & A
- What is the TMS320C6415EGLZA5E0?
The TMS320C6415EGLZA5E0 is a fixed-point digital signal processor from Texas Instruments, part of the C64x family.
- What are the key features of the TMS320C6415EGLZA5E0?
Key features include a high-performance CPU, advanced cache architecture, multiple McBSPs, PCI interface, UTOPIA interface, and enhanced DMA controller.
- What are the typical applications of the TMS320C6415EGLZA5E0?
Typical applications include telecommunications, industrial automation, multimedia systems, and various embedded systems.
- What is the CPU frequency of the TMS320C6415EGLZA5E0?
The CPU frequency can be up to 720 MHz.
- What type of cache memory does the TMS320C6415EGLZA5E0 have?
The processor has a 16K-Byte L1 program cache, a 16K-Byte L1 data cache, and a 1024K-Byte L2 unified mapped RAM/cache.
- Does the TMS320C6415EGLZA5E0 support external memory interfaces?
Yes, it supports 64-bit EMIFA and 16-bit EMIFB external memory interfaces.
- What peripherals are available on the TMS320C6415EGLZA5E0?
Available peripherals include EDMA, HPI, PCI, McBSPs, UTOPIA, 32-bit timers, and GPIO pins.
- What is the package type of the TMS320C6415EGLZA5E0?
The processor is packaged in a 532-Pin Ball Grid Array (BGA).
- What are the voltage requirements for the TMS320C6415EGLZA5E0?
The core voltage is 1.2 V, and the I/O voltage is 3.3 V.
- Is the TMS320C6415EGLZA5E0 pin-for-pin compatible with other C64x devices?
The TMS320C6415 is pin-for-pin compatible with the TMS320C6414 and TMS320C6416 under certain conditions, such as disabling specific peripherals on the C6415/C6416.
