Overview
The TMS320TCI6482BCTZ2 is a Digital Signal Processor (DSP) from Texas Instruments, designed for high-performance applications in various fields such as audio and image processing, telecommunications, and control systems. This DSP is part of the TMS320C64x+ series and is optimized for soft digital baseband processing in wireless infrastructure equipment. It features advanced architecture, including a 1.2 GHz clock rate, Ethernet MAC, I²C, and McBSP interfaces, making it a robust solution for demanding signal processing tasks.
Key Specifications
| Series | TMS320C64x+ |
|---|---|
| Product Status | Active |
| Type | Fixed Point |
| Interface | Ethernet MAC, I²C, McBSP |
| Clock Rate | 1.2 GHz |
| Non-Volatile Memory | ROM (64 kB) |
| On-Chip RAM | 2.192 MB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.25V |
| Operating Temperature | 0°C ~ 90°C (TA) |
| Mounting Type | Surface Mount |

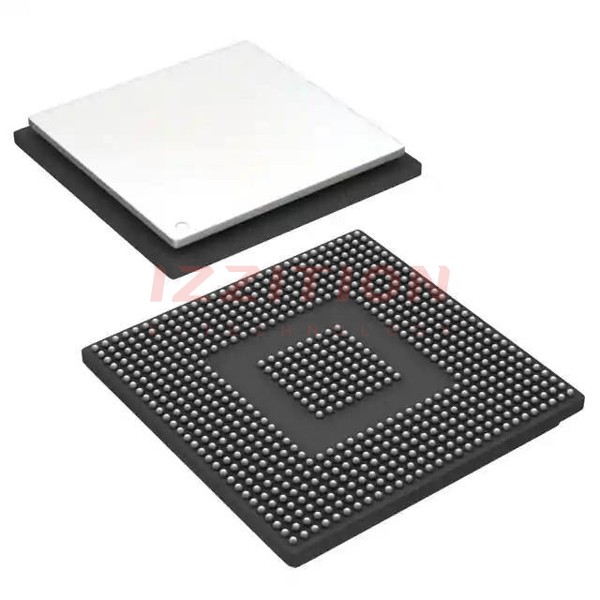

| Package / Case | 697-BFBGA, FCBGA |
Key Features
- Fixed-point Digital Signal Processor with TMS320C64x+ series architecture
- Clock rate of 1.2 GHz
- Ethernet MAC, I²C, and McBSP interfaces
- ROM (64 kB) and on-chip RAM (2.192 MB)
- Operating temperature range: 0°C to 90°C (TA)
- Leverages industry-leading 90nm process technology for high power efficiency
- New wireless infrastructure DSP instructions for improved baseband performance
- Serial RapidIO interface for efficient communication
- Turbo and Viterbi co-processors for enhanced channel decoding operations
Applications
- Audio and image processing systems
- Telecommunications equipment, including macro and micro base stations
- Control systems for industrial or consumer applications
- Wireless infrastructure equipment supporting various standards such as TD-SCDMA, UMTS (3GPP), CDMA2000 (3GPP2), and GSM-EDGE
Q & A
- What is the TMS320TCI6482BCTZ2 used for?
The TMS320TCI6482BCTZ2 is used for high-performance digital signal processing in applications such as audio and image processing, telecommunications, and control systems.
- What is the clock rate of the TMS320TCI6482BCTZ2?
The clock rate of the TMS320TCI6482BCTZ2 is 1.2 GHz.
- What interfaces does the TMS320TCI6482BCTZ2 support?
The TMS320TCI6482BCTZ2 supports Ethernet MAC, I²C, and McBSP interfaces.
- How much on-chip RAM does the TMS320TCI6482BCTZ2 have?
The TMS320TCI6482BCTZ2 has 2.192 MB of on-chip RAM.
- What is the operating temperature range of the TMS320TCI6482BCTZ2?
The operating temperature range of the TMS320TCI6482BCTZ2 is 0°C to 90°C (TA).
- What package types are available for the TMS320TCI6482BCTZ2?
The TMS320TCI6482BCTZ2 is available in 697-BFBGA and FCBGA package types.
- Is the TMS320TCI6482BCTZ2 suitable for wireless infrastructure applications?
Yes, the TMS320TCI6482BCTZ2 is optimized for soft digital baseband processing in wireless infrastructure equipment.
- Does the TMS320TCI6482BCTZ2 support serial RapidIO interfaces?
Yes, the TMS320TCI6482BCTZ2 supports serial RapidIO interfaces for efficient communication.
- What are the supported wireless standards for the TMS320TCI6482BCTZ2?
The TMS320TCI6482BCTZ2 supports various wireless standards including TD-SCDMA, UMTS (3GPP), CDMA2000 (3GPP2), and GSM-EDGE.
- Is the TMS320TCI6482BCTZ2 power-efficient?
Yes, the TMS320TCI6482BCTZ2 is designed to be power-efficient, consuming approximately 3 watts or less.
- What co-processors are included in the TMS320TCI6482BCTZ2 for channel decoding?
The TMS320TCI6482BCTZ2 includes Turbo and Viterbi co-processors for enhanced channel decoding operations.
