Overview
The TMS320DM335ZCE270 is a Digital Media System-on-Chip (DMSoC) produced by Texas Instruments. This chip is part of the TMS320DM3x series, also known as the DaVinci™ family, and is designed for multimedia applications. It integrates a powerful ARM926EJ-S processor core along with various peripherals and coprocessors, making it suitable for embedded multimedia systems. The DM335ZCE270 is optimized for low power consumption and high performance, supporting real-time high-resolution video and audio processing.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | TMS320DM335ZCE270 |
| Manufacturer | Texas Instruments |
| Type | Digital Media System-on-Chip (DMSoC) |

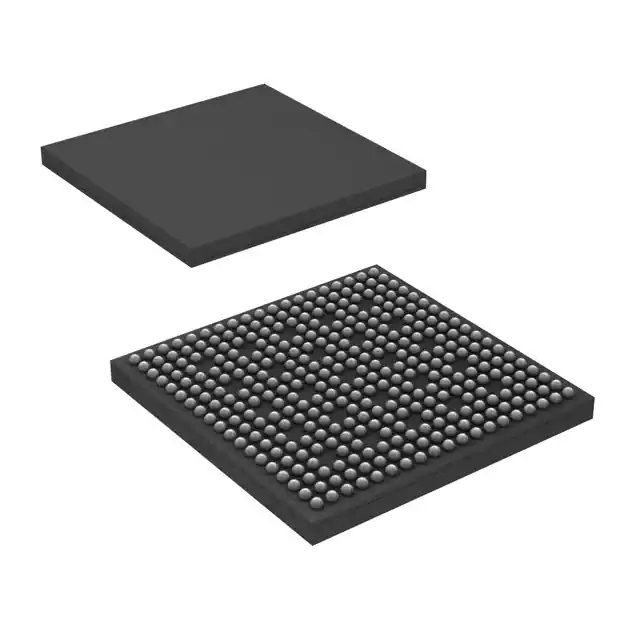

| Package / Case | 337-LFBGA (13x13) |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.30V |
| Clock Rate | 270 MHz |
| On-Chip RAM | 56 kB |
| Non-Volatile Memory | ROM (8 kB) |
| Interface | ASP, EBI/EMI, I²C, SPI, UART, USB |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- Powerful DSP for Image and Video Processing: The TMS320DM335ZCE270 features an ARM926EJ-S processor core with DSP instruction extensions, enabling high-performance image and video processing.
- Integrated Digital Video Encoder: Supports MPEG4 SP and JPEG codecs for various resolutions, including HD (720p), D1, VGA, and SIF.
- Advanced Power Management: Configurable power-saving modes to optimize energy efficiency.
- Programmable Video Processing: Includes a video processing subsystem with hardware IPIPE for real-time image processing and a histogram module.
- Rich Set of Peripherals: Includes DDR and mDDR SDRAM, MMC/SD/SDIO and SmartMedia flash card interfaces, USB 2.0, UARTs, SPIs, and I²C.
- High-Performance Audio Capabilities: Supports various audio interfaces such as ASP, I2S, TDM I2S, and AC97 audio codec.
- System-Level Integration: Reduces design complexity by integrating multiple functions on a single chip.
Applications
- Embedded Multimedia Applications: Suitable for digital still cameras, digital photo frames, IP security cameras, and digital video recorders.
- Security and Surveillance Systems: Ideal for applications requiring real-time video processing and encoding.
- Industrial Controls: Can be used in industrial automation systems that require multimedia processing capabilities.
Q & A
- What is the TMS320DM335ZCE270?
The TMS320DM335ZCE270 is a Digital Media System-on-Chip (DMSoC) produced by Texas Instruments, designed for multimedia applications.
- What is the clock rate of the TMS320DM335ZCE270?
The clock rate of the TMS320DM335ZCE270 is 270 MHz.
- What type of processor core does the TMS320DM335ZCE270 use?
The TMS320DM335ZCE270 uses an ARM926EJ-S processor core.
- What are the key interfaces supported by the TMS320DM335ZCE270?
The chip supports ASP, EBI/EMI, I²C, SPI, UART, and USB interfaces.
- What is the package type of the TMS320DM335ZCE270?
The package type is 337-LFBGA (13x13).
- What are the operating temperature ranges for the TMS320DM335ZCE270?
The operating temperature range is 0°C ~ 85°C (TC).
- Is the TMS320DM335ZCE270 RoHS compliant?
Yes, the TMS320DM335ZCE270 is lead-free and RoHS compliant.
- What are some of the applications for the TMS320DM335ZCE270?
It is suitable for embedded multimedia applications, security and surveillance systems, and industrial controls.
- Does the TMS320DM335ZCE270 support high-resolution video processing?
Yes, it supports real-time high-resolution video processing, including HD (720p) and other resolutions.
- What is the on-chip memory configuration of the TMS320DM335ZCE270?
The chip has 56 kB of on-chip RAM and 8 kB of ROM.
