TMS320C6455DCTZA8
  • Share:

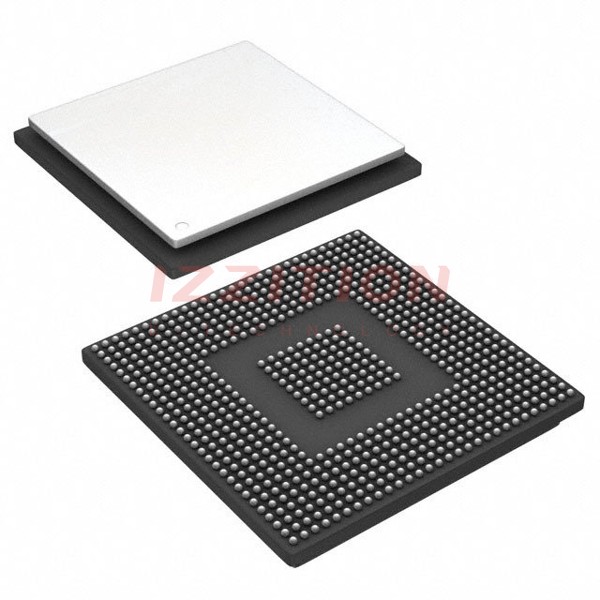

Texas Instruments TMS320C6455DCTZA8

Manufacturer No:
TMS320C6455DCTZA8
Manufacturer:
Texas Instruments
Package:
Tube
Description:
IC DSP FIXED-POINT 697FCBGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TMS320C6455DCTZA8 is a high-performance fixed-point digital signal processor (DSP) developed by Texas Instruments. It is part of the TMS320C6000 DSP platform and is based on the third-generation VelociTI™ very-long-instruction-word (VLIW) architecture. This processor is designed to deliver exceptional performance and is suitable for a wide range of applications, including video and telecom infrastructure, imaging/medical, and wireless infrastructure.

Key Specifications

Feature Specification
Clock Rate 720 MHz, 850 MHz, 1 GHz, 1.2 GHz
Instruction Cycle Time 1.39 ns (720 MHz), 1.17 ns (850 MHz), 1 ns (1 GHz), 0.83 ns (1.2 GHz)
Performance 9600 MIPS/MMACS (16-Bits)
Memory 32KB L1 Program Memory, 32KB L1 Data Memory, 2048KB L2 Unified Memory/Cache
Memory Interface 64-bit External Memory Interface (EMIFA), 32-bit DDR2 SDRAM Interface
Peripherals I2C, McBSP, UTOPIA Slave, PCI, Ethernet MAC (10/100/1000), GPIO, EDMA3 Controller
Package 697-Pin Ball Grid Array (BGA)
Process Technology 0.09 μm CMOS
Operating Temperature Commercial: 0°C to 90°C, Extended: -40°C to 105°C

Key Features

  • High-Performance DSP Core: The TMS320C6455 features the C64x+ DSP core, which includes eight functional units, two register files, and two data paths, enabling high-performance processing.
  • Advanced Memory System: The processor includes a two-level memory system with 32KB L1 program and data memories and 2048KB L2 unified memory/cache.
  • Peripheral Set: Includes I2C, McBSP, UTOPIA Slave, PCI, Ethernet MAC (10/100/1000), GPIO, and an EDMA3 controller with 64 independent channels.
  • High-Speed Interfaces: Supports DDR2 SDRAM, 64-bit EMIFA, and high-speed serial RapidIO ports.
  • Power Management: Features power-down control and various voltage levels (3.3V, 1.8V, 1.5V, 1.25V, 1.2V) for I/O and internal operations.

Applications

  • Video and Telecom Infrastructure: Suitable for high-performance video processing and telecom applications due to its advanced DSP core and high-speed interfaces.
  • Imaging/Medical: Used in medical imaging and other high-performance imaging applications requiring advanced signal processing.
  • Wireless Infrastructure: Ideal for wireless infrastructure applications, including base stations and other wireless communication systems.
  • Industrial Automation: Can be used in industrial automation for real-time signal processing and control.

Q & A

  1. What is the clock rate range of the TMS320C6455 DSP?

    The TMS320C6455 operates at clock rates of 720 MHz, 850 MHz, 1 GHz, and 1.2 GHz.

  2. What is the performance of the TMS320C6455 in terms of MIPS/MMACS?

    The TMS320C6455 achieves 9600 MIPS/MMACS (16-Bits).

  3. What type of memory does the TMS320C6455 support?

    The processor supports 32KB L1 program and data memories, 2048KB L2 unified memory/cache, and external memory interfaces such as 64-bit EMIFA and 32-bit DDR2 SDRAM.

  4. What peripherals are integrated into the TMS320C6455?

    The TMS320C6455 includes peripherals such as I2C, McBSP, UTOPIA Slave, PCI, Ethernet MAC (10/100/1000), GPIO, and an EDMA3 controller.

  5. What is the package type and pin count of the TMS320C6455?

    The TMS320C6455 is packaged in a 697-Pin Ball Grid Array (BGA).

  6. What are the operating temperature ranges for the TMS320C6455?

    The commercial temperature range is 0°C to 90°C, and the extended temperature range is -40°C to 105°C.

  7. What process technology is used in the TMS320C6455?

    The TMS320C6455 is fabricated using 0.09 μm CMOS technology.

  8. What are some typical applications of the TMS320C6455?

    Typical applications include video and telecom infrastructure, imaging/medical, wireless infrastructure, and industrial automation.

  9. Does the TMS320C6455 support high-speed interfaces?

    Yes, it supports high-speed interfaces such as DDR2 SDRAM, 64-bit EMIFA, and serial RapidIO ports.

  10. What development tools are available for the TMS320C6455?

    The TMS320C6455 has a set of development tools including a new C compiler, an assembly optimizer, and a Windows debugger interface.

Product Attributes

Type:Fixed Point
Interface:Host Interface, I²C, McBSP, PCI, UTOPIA
Clock Rate:850MHz
Non-Volatile Memory:ROM (32kB)
On-Chip RAM:2.1MB
Voltage - I/O:1.2V,1.25V,1.5V,1.8V,3.3V
Voltage - Core:1.20V
Operating Temperature:-40°C ~ 105°C (TC)
Mounting Type:Surface Mount
Package / Case:697-BFBGA, FCBGA
Supplier Device Package:697-FCBGA (24x24)
0 Remaining View Similar

In Stock

$82.31
11

Please send RFQ , we will respond immediately.
