Overview
The TM4C1299KCZADI3R is a 32-bit microcontroller from Texas Instruments, part of the Tiva C Series. It is based on the ARM Cortex-M4F processor core, which provides high performance and low power consumption. This microcontroller is designed for a wide range of applications, including industrial automation, medical devices, and consumer electronics. It features a robust set of peripherals and advanced motion control capabilities, making it a versatile choice for complex embedded systems.
Key Specifications
| Specification | Value |
|---|---|
| Processor Core | ARM Cortex-M4F |
| Flash Memory | 512 KB |
| SRAM | 256 KB |
| Operating Voltage | 1.32 V to 3.63 V (Core), 1.14 V to 2.97 V (I/O) |

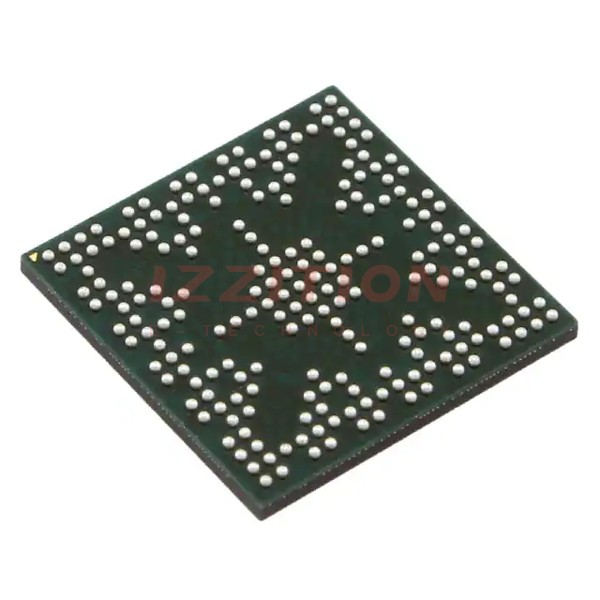

| Package Type | 212-BGA |
| Communication Interfaces | CAN, Ethernet, I2C, SSI, SPI, UART, USB |
| Analog Peripherals | 12-bit ADC, Analog Comparators, Internal Temperature Sensor |
| Debugging Interfaces | JTAG, ARM Serial Wire Debug |
Key Features
- ARM Cortex-M4F Processor Core: Provides high performance with a floating-point unit (FPU) and DSP instructions.
- On-Chip Memory: Includes 512 KB of flash memory, 256 KB of SRAM, and 4 KB of EEPROM.
- Advanced Motion Control: Features a set of peripherals optimized for motor control and other motion control applications.
- Serial Communications Peripherals: Supports CAN, Ethernet, I2C, SSI, SPI, UART, and USB interfaces.
- Analog Peripherals: Includes a 12-bit ADC, analog comparators, and an internal temperature sensor.
- Debugging Interfaces: Supports JTAG and ARM Serial Wire Debug for comprehensive debugging capabilities.
- Power Management: Offers various sleep modes and a hibernation module for low power consumption.
Applications
- Industrial Automation: Suitable for control systems, robotics, and industrial control panels.
- Medical Devices: Can be used in medical diagnostic equipment, patient monitoring systems, and other medical applications.
- Consumer Electronics: Applicable in smart home devices, wearables, and other consumer electronics requiring advanced processing and low power consumption.
- Automotive Systems: Used in automotive control units, infotainment systems, and safety systems.
- Internet of Things (IoT): Ideal for IoT devices that require robust processing, low power, and multiple communication interfaces.
Q & A
- What is the processor core of the TM4C1299KCZADI3R microcontroller?
The processor core is the ARM Cortex-M4F.
- How much flash memory does the TM4C1299KCZADI3R have?
The microcontroller has 512 KB of flash memory.
- What are the operating voltage ranges for the TM4C1299KCZADI3R?
The core operates between 1.32 V to 3.63 V, and the I/O operates between 1.14 V to 2.97 V.
- What communication interfaces are supported by the TM4C1299KCZADI3R?
The microcontroller supports CAN, Ethernet, I2C, SSI, SPI, UART, and USB interfaces.
- Does the TM4C1299KCZADI3R have any analog peripherals?
- What debugging interfaces are available on the TM4C1299KCZADI3R?
The microcontroller supports JTAG and ARM Serial Wire Debug.
- What are some common applications of the TM4C1299KCZADI3R?
It is commonly used in industrial automation, medical devices, consumer electronics, automotive systems, and IoT devices.
- How does the TM4C1299KCZADI3R manage power consumption?
The microcontroller offers various sleep modes and a hibernation module to reduce power consumption.
- What is the package type of the TM4C1299KCZADI3R?
The microcontroller is packaged in a 212-BGA package.
- Does the TM4C1299KCZADI3R support advanced motion control?
