Overview

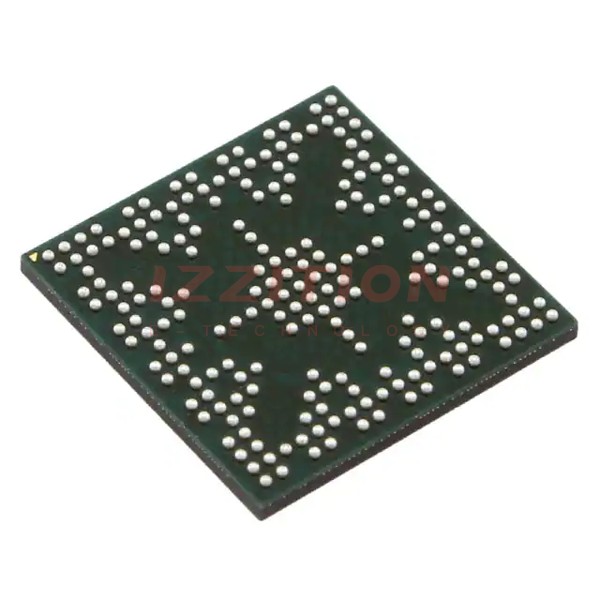

The TM4C1290NCZADI3 is a 32-bit microcontroller (MCU) from Texas Instruments, part of their Tiva™ C Series. This MCU is based on the Arm Cortex-M4F processor and operates at a frequency of up to 120 MHz. It features 1 MB of flash memory and 256 KB of RAM, making it a robust solution for a variety of embedded systems applications. The device is packaged in a 212-pin NFBGA (ZAD) package and supports a wide temperature range of -40°C to 85°C, ensuring reliability in diverse environmental conditions.
Key Specifications
| Specification | Value |
|---|---|
| Processor | 32-bit Arm Cortex-M4F |
| Operating Frequency | Up to 120 MHz |
| Flash Memory | 1 MB |
| RAM | 256 KB |
| Package Type | 212-pin NFBGA (ZAD) |
| Temperature Range | -40°C to 85°C |
| USB Support | Yes |
Key Features
- High-Performance Processor: The Arm Cortex-M4F processor provides high computational power and efficiency.
- Extensive Memory: 1 MB of flash memory and 256 KB of RAM support complex applications.
- USB Support: Integrated USB interface for easy connectivity and data transfer.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, making it suitable for various industrial and automotive applications.
Applications
The TM4C1290NCZADI3 is versatile and can be used in a variety of applications, including:
- Industrial Automation: Control systems, motor control, and industrial IoT devices.
- Automotive Systems: Infotainment, driver assistance systems, and vehicle control units.
- Medical Devices: Portable medical devices, diagnostic equipment, and patient monitoring systems.
- Consumer Electronics: Smart home devices, wearables, and other consumer electronics requiring high performance and low power consumption.
Q & A
- What is the processor type of the TM4C1290NCZADI3?
The TM4C1290NCZADI3 is based on the 32-bit Arm Cortex-M4F processor. - What is the maximum operating frequency of the TM4C1290NCZADI3?
The maximum operating frequency is up to 120 MHz. - How much flash memory and RAM does the TM4C1290NCZADI3 have?
The device has 1 MB of flash memory and 256 KB of RAM. - What is the package type of the TM4C1290NCZADI3?
The device is packaged in a 212-pin NFBGA (ZAD) package. - What is the temperature range of the TM4C1290NCZADI3?
The device operates from -40°C to 85°C. - Does the TM4C1290NCZADI3 support USB?
Yes, the device supports USB. - What are some common applications of the TM4C1290NCZADI3?
Common applications include industrial automation, automotive systems, medical devices, and consumer electronics. - Who is the manufacturer of the TM4C1290NCZADI3?
The manufacturer is Texas Instruments. - Where can I find detailed specifications for the TM4C1290NCZADI3?
Detailed specifications can be found on the Texas Instruments official website, as well as on distributor websites like Mouser and Digi-Key. - Is the TM4C1290NCZADI3 suitable for high-performance applications?
Yes, the device is designed for high-performance applications due to its powerful processor and ample memory.
