Overview
The TLV9052SIRUGR is a dual operational amplifier manufactured by Texas Instruments, designed for low-voltage operation and high-performance applications. This model is part of the TLV905x series, optimized for a supply voltage range of 1.8V to 5.5V, making it suitable for cost-sensitive applications requiring high slew rates and low power consumption. The TLV9052SIRUGR is widely used in industrial, automotive, and consumer electronics due to its rail-to-rail input and output capabilities, high precision, and robust design.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 2 | - | Dual operational amplifier |
| Supply Voltage Range | 1.8 to 5.5 | V | Low-voltage operation |
| Gain Bandwidth Product | 5 | MHz | High-frequency performance |
| Slew Rate | 15 | V/µs | High-speed signal processing |
| Input Offset Voltage | ±0.33 | mV | High precision |
| Quiescent Current | 330 | µA | Low power consumption |
| Operating Temperature Range | -40 to 125 | °C | Wide temperature range |

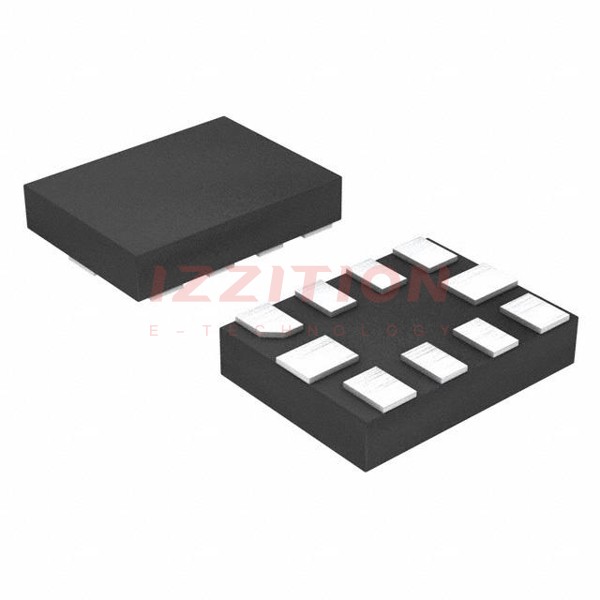

| Package | X2QFN (RUG) | - | Compact form factor |
Key Features
- Rail-to-rail input and output for maximum dynamic range.
- High slew rate of 15V/µs for fast signal processing.
- Low input offset voltage of ±0.33mV for precision applications.
- Low quiescent current of 330µA for energy-efficient designs.
- Wide operating temperature range from -40°C to 125°C for robust performance in harsh environments.
- Built-in RFI and EMI filters for enhanced noise immunity.
Applications
The TLV9052SIRUGR is ideal for a variety of applications, including industrial automation, motor control, and portable electronics. Its low-voltage operation and high precision make it suitable for battery-powered devices, while its robust design ensures reliability in automotive systems. Additionally, it is used in sensor signal conditioning, audio amplification, and data acquisition systems.
Q & A
1. What is the supply voltage range of the TLV9052SIRUGR?
The supply voltage range is 1.8V to 5.5V.
2. What is the slew rate of this operational amplifier?
The slew rate is 15V/µs.
3. Can the TLV9052SIRUGR operate in harsh environments?
Yes, it has an operating temperature range of -40°C to 125°C.
4. What is the input offset voltage of this amplifier?
The input offset voltage is ±0.33mV.
5. Is the TLV9052SIRUGR suitable for battery-powered devices?
Yes, its low quiescent current of 330µA makes it ideal for battery-powered applications.
6. What package does the TLV9052SIRUGR come in?
It comes in an X2QFN (RUG) package.
7. Does this amplifier have built-in noise filters?
Yes, it includes RFI and EMI filters for enhanced noise immunity.
8. What is the gain bandwidth product of the TLV9052SIRUGR?
The gain bandwidth product is 5MHz.
9. Can this amplifier be used in motor control applications?
Yes, it is suitable for motor control and other industrial applications.
10. What is the typical quiescent current of this amplifier?
The typical quiescent current is 330µA.
