Overview

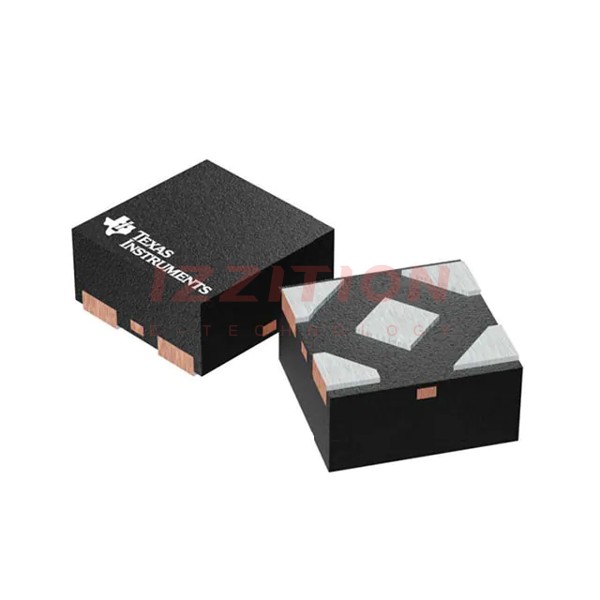

The TLV9001IDPWR is a low-power, rail-to-rail input and output operational amplifier (op amp) designed by Texas Instruments. It is part of the TLV900x family, which includes single, dual, and quad-channel variants. This device is tailored for cost-sensitive and space-constrained applications, offering a scalable CMOS amplifier solution with low-voltage operation and high capacitive-load drive capabilities.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage Range | 1.8 to 5.5 | V |
| Input Offset Voltage | ±0.4 | mV |
| Bandwidth | 1 | MHz |
| Capacitive Load Drive | 500 | pF |
| Operating Temperature Range | –40 to 125 | °C |
| Shutdown Current | < 1 | µA |
| Package Types | SOT-23, SC70, X2SON, SOT-553 |
Key Features
- Scalable CMOS amplifier for low-cost applications
- Rail-to-rail input and output swing capabilities
- Low input offset voltage: ±0.4 mV
- Unity-gain stability and resistive open-loop output impedance for easier stabilization with high capacitive loads
- Integrated RFI and EMI rejection filter
- No-phase reversal in overdrive conditions
- Shutdown mode with typical current consumption less than 1 µA
- Micro-size packages available, including SOT-553 and WSON, along with industry-standard packages
Applications
- Smoke detectors
- Wearable electronics
- Small appliances
- Space-constrained applications requiring low-voltage operation and high capacitive-load drive
Q & A
- What is the supply voltage range of the TLV9001IDPWR?
The supply voltage range is from 1.8 V to 5.5 V.
- What is the input offset voltage of the TLV9001IDPWR?
The input offset voltage is ±0.4 mV.
- What is the bandwidth of the TLV9001IDPWR?
The bandwidth is 1 MHz.
- What is the maximum capacitive load drive of the TLV9001IDPWR?
The maximum capacitive load drive is 500 pF.
- What are the operating temperature ranges for the TLV9001IDPWR?
The operating temperature range is from –40°C to 125°C.
- Does the TLV9001IDPWR have a shutdown mode?
- What types of packages are available for the TLV9001IDPWR?
The TLV9001IDPWR is available in SOT-23, SC70, X2SON, and SOT-553 packages.
- What are some common applications for the TLV9001IDPWR?
- Does the TLV9001IDPWR have integrated RFI and EMI rejection?
- Is the TLV9001IDPWR stable at unity gain?
