Overview

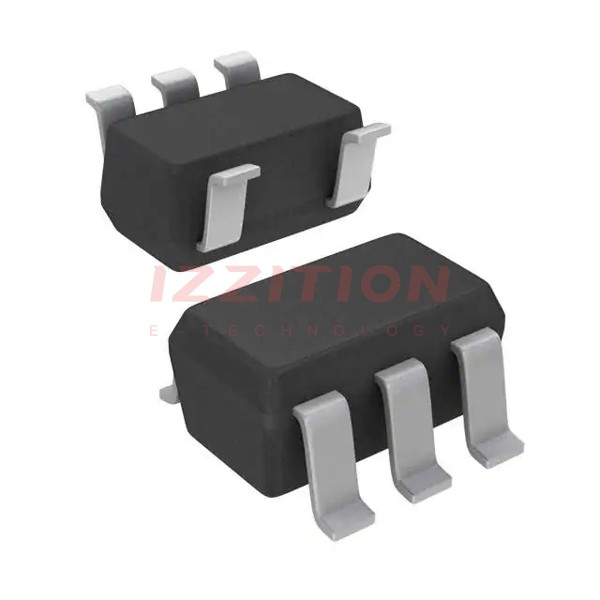

The TLV6003DBVR is a single ultra-low power operational amplifier manufactured by Texas Instruments. This device is known for its precision and rail-to-rail input and output capabilities, making it highly versatile for various applications. It operates with an extremely low quiescent current of 980 nA and supports a wide voltage range of up to 16 V. The TLV6003DBVR is packaged in a compact SOT-23 (DBV) package with 5 pins, making it suitable for space-constrained designs.
Key Specifications
| Parameter | Value |
|---|---|
| Quiescent Current | 980 nA |
| Input Voltage Range | Rail-to-Rail |
| Output Voltage Range | Rail-to-Rail |
| Maximum Operating Voltage | 16 V |
| Package Type | SOT-23 (DBV) |
| Number of Pins | 5 |
Key Features
- Ultra-low quiescent current of 980 nA, ideal for battery-powered devices and low-power applications.
- Rail-to-rail input and output, providing maximum signal range and flexibility.
- Wide operating voltage range up to 16 V.
- Compact SOT-23 (DBV) package, suitable for space-constrained designs.
- Precision operation, ensuring high accuracy in various applications.
Applications
The TLV6003DBVR is suitable for a variety of applications, including:
- Battery-powered devices where low power consumption is critical.
- Portable electronics such as handheld devices and wearables.
- Industrial control systems requiring precision and low power.
- Medical devices that need reliable and low-power amplification.
- Automotive systems where space and power efficiency are important.
Q & A
- What is the quiescent current of the TLV6003DBVR? The quiescent current is 980 nA.
- What is the input voltage range of the TLV6003DBVR? The input voltage range is rail-to-rail.
- What is the maximum operating voltage of the TLV6003DBVR? The maximum operating voltage is 16 V.
- What package type is the TLV6003DBVR available in? The TLV6003DBVR is available in a SOT-23 (DBV) package.
- How many pins does the TLV6003DBVR have? The TLV6003DBVR has 5 pins.
- What are some typical applications of the TLV6003DBVR? Typical applications include battery-powered devices, portable electronics, industrial control systems, medical devices, and automotive systems.
- Why is the TLV6003DBVR considered a precision operational amplifier? It is considered a precision operational amplifier due to its high accuracy and reliability in various applications.
- Is the TLV6003DBVR suitable for space-constrained designs? Yes, it is suitable due to its compact SOT-23 (DBV) package.
- Can the TLV6003DBVR operate in a wide range of temperatures? While specific temperature ranges are not detailed here, it is generally designed for a wide range of operating temperatures typical for operational amplifiers.
- Where can I purchase the TLV6003DBVR? The TLV6003DBVR can be purchased from various electronic component distributors such as Digi-Key, Mouser, and Texas Instruments' official website.
