Overview
The TLV320DAC3203IYZKR, produced by Texas Instruments, is a highly versatile and efficient stereo audio codec. This device is characterized by its low power consumption, low voltage operation, and extensive signal processing capabilities. It features programmable outputs, PowerTune technology, and integrated headphone amplifiers, making it an ideal choice for various audio applications. The TLV320DAC3203IYZKR is available in compact packages, including 4 mm × 4 mm VQFN and 2.7 mm × 2.7 mm DSGBA, enhancing its suitability for space-constrained designs.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage | 1.1 to 3.6 | V DC |
| Operating Temperature Range | -40 to 85 | °C |

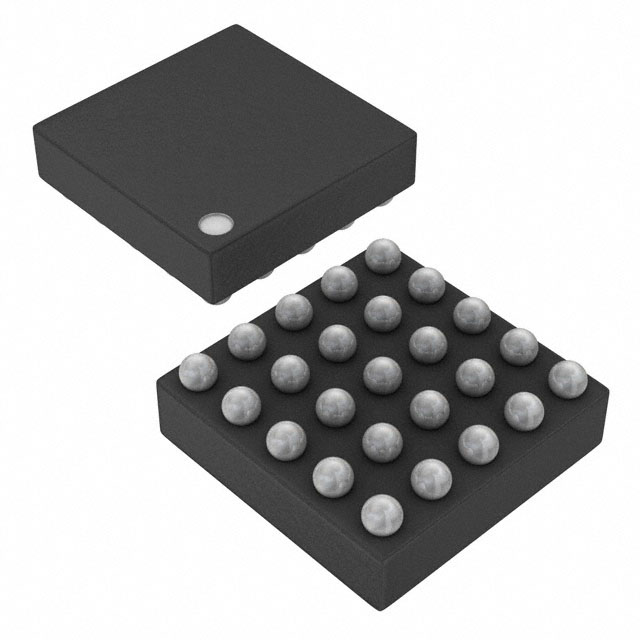

| Package Type | DSBGA25 | |
| Signal-to-Noise Ratio (SNR) | 100 | dB |
| Power Consumption (Stereo 48ksps Playback) | 4.1 | mW |
| Headphone Output Configuration | Stereo Single-Ended and Differential | |
| Integrated Components | PLL, LDO, Headphone Amplifiers | |
| Package Dimensions | 2.7 mm × 2.7 mm (DSGBA) |
Key Features
- Stereo Audio DAC with 100dB SNR
- Low power consumption: 4.1mW for stereo 48ksps playback
- PowerTune™ technology for optimized power management
- Extensive signal processing options with predefined and parameterizable blocks
- Stereo headphone outputs with integrated amplifiers
- Low power analog bypass mode
- Programmable PLL and integrated LDO
- Flexible digital interfaces
- Compact packaging: 4 mm × 4 mm VQFN and 2.7 mm × 2.7 mm DSGBA
Applications
- Mobile Handsets
- Communication Devices
- Portable Computing Devices
Q & A
- What is the TLV320DAC3203IYZKR? The TLV320DAC3203IYZKR is a low-power, low-voltage stereo audio codec produced by Texas Instruments.
- What are the key features of the TLV320DAC3203IYZKR? It includes a stereo audio DAC with 100dB SNR, PowerTune technology, extensive signal processing options, and integrated headphone amplifiers.
- What are the typical applications of the TLV320DAC3203IYZKR? It is commonly used in mobile handsets, communication devices, and portable computing devices.
- What is the operating temperature range of the TLV320DAC3203IYZKR? The operating temperature range is -40°C to 85°C.
- What are the available package types for the TLV320DAC3203IYZKR? It is available in 4 mm × 4 mm VQFN and 2.7 mm × 2.7 mm DSGBA packages.
- What is the supply voltage range for the TLV320DAC3203IYZKR? The supply voltage range is 1.1 to 3.6 V DC.
- Does the TLV320DAC3203IYZKR have integrated components? Yes, it includes an integrated PLL, LDO, and headphone amplifiers.
- What is the power consumption during stereo 48ksps playback? The power consumption is 4.1 mW during stereo 48ksps playback.
- Does the TLV320DAC3203IYZKR support low power analog bypass mode? Yes, it supports low power analog bypass mode.
- What kind of digital interfaces does the TLV320DAC3203IYZKR offer? It offers flexible digital interfaces.
