Overview

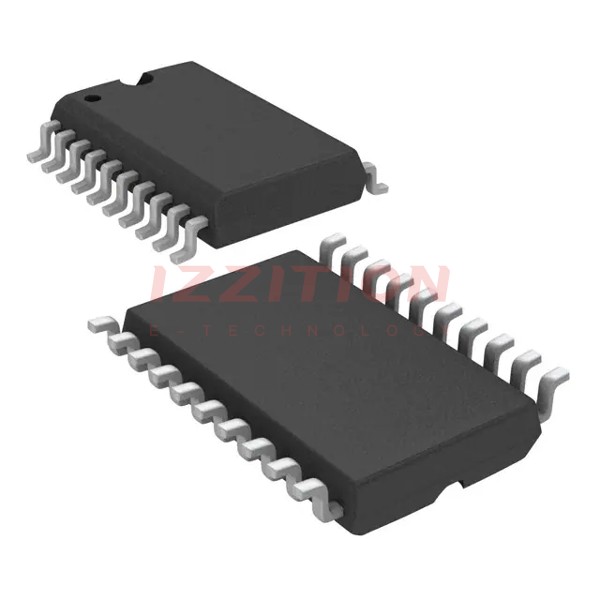

The TLV2548IDWG4, produced by Texas Instruments, is a high-performance, 12-bit low-power CMOS analog-to-digital converter (ADC). This device operates from a single 2.7-V to 5.5-V power supply and is characterized for operation from −40°C to 85°C. It features a 3.86 µs conversion time and supports a 4-wire SPI interface, making it compatible with most popular host microprocessors. The TLV2548 includes an on-chip analog multiplexer, allowing selection of any of the eight analog inputs or three internal self-test voltages. The device also supports various power-saving modes and programmable conversion speeds, enhancing its versatility and efficiency.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Time | 3.86 µs (typical) |
| Power Supply | 2.7 V to 5.5 V |
| Operating Temperature | −40°C to 85°C |
| Interface | 4-wire SPI |
| Analog Inputs | 8 channels |
| Internal Reference Voltages | 2 V or 4 V |
| Conversion Clock Source | Internal OSC or external SCLK |
| Package | 20-TSSOP (PW) |
Key Features
- High-speed conversion with up to 2.8 µs conversion time using a 20 MHz SCLK.
- Low power consumption with software, hardware, and auto-power-down modes.
- Programmable auto-channel sweep and conversion modes (single shot, repeat, sweep, repeat sweep).
- On-chip analog multiplexer for selecting analog inputs or internal self-test voltages.
- Support for external reference voltage for maximum flexibility.
- 3-state output for serial data output (SDO) and compatibility with TI DSP frame sync (FS) signal.
Applications
The TLV2548IDWG4 is suitable for a variety of applications requiring high-performance and low-power analog-to-digital conversion. These include:
- Industrial automation and control systems.
- Medical devices and diagnostic equipment.
- Aerospace and defense systems.
- Automotive systems, especially those requiring high reliability and low power consumption.
- Data acquisition systems and test equipment.
Q & A
- What is the resolution of the TLV2548IDWG4 ADC?
The TLV2548IDWG4 has a resolution of 12 bits. - What is the typical conversion time of the TLV2548IDWG4?
The typical conversion time is 3.86 µs. - What is the operating temperature range of the TLV2548IDWG4?
The device operates from −40°C to 85°C. - What interface does the TLV2548IDWG4 use?
The device uses a 4-wire SPI interface. - How many analog input channels does the TLV2548IDWG4 have?
The device has 8 analog input channels. - What are the available internal reference voltages for the TLV2548IDWG4?
The available internal reference voltages are 2 V and 4 V. - Can the TLV2548IDWG4 use an external reference voltage?
Yes, the device can use an external reference voltage for maximum flexibility. - What are the power-saving modes available on the TLV2548IDWG4?
The device supports software, hardware, and auto-power-down modes. - How can the conversion speed be adjusted on the TLV2548IDWG4?
The conversion speed can be adjusted by selecting different conversion clock sources, including internal OSC or external SCLK. - What package type is the TLV2548IDWG4 available in?
The device is available in a 20-TSSOP (PW) package.
