Overview
The TLV2474AQDRG4Q1 is an automotive-grade, quad operational amplifier produced by Texas Instruments. This device is designed to operate within a wide temperature range of -40°C to 125°C, making it suitable for various automotive and industrial applications. It features a high drive capability, rail-to-rail input and output, and a low offset voltage, ensuring high precision and reliability in its operation.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 |
| Supply Voltage | 6 V |
| Bandwidth | 2.8 MHz |
| Offset Voltage | 1.6 mV |
| Input Bias Current | 600 uA per channel |
| Operating Temperature | -40°C to 125°C |

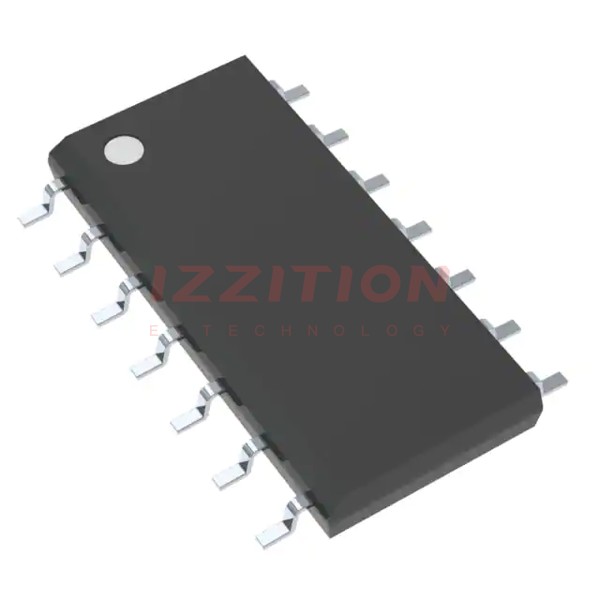

| Package Type | 14-SOIC |
Key Features
- Rail-to-Rail Input and Output: Ensures that the amplifier can operate over the full range of the supply voltage.
- High Drive Capability: Capable of driving heavy loads.
- Low Offset Voltage: Provides high precision with a low offset voltage of 1.6 mV.
- Automotive Grade: Designed to meet the stringent requirements of automotive applications.
- Wide Temperature Range: Operates reliably from -40°C to 125°C.
Applications
- Automotive Systems: Suitable for various automotive applications due to its automotive-grade certification and wide temperature range.
- Industrial Control Systems: Used in industrial control systems that require high precision and reliability.
- Medical Devices: Can be used in medical devices that need low offset voltage and high drive capability.
- Aerospace: Applicable in aerospace systems where high reliability and wide temperature range are critical.
Q & A
- What is the supply voltage range of the TLV2474AQDRG4Q1?
The supply voltage range is up to 6 V. - How many channels does the TLV2474AQDRG4Q1 have?
The TLV2474AQDRG4Q1 is a quad operational amplifier, meaning it has 4 channels. - What is the bandwidth of the TLV2474AQDRG4Q1?
The bandwidth is 2.8 MHz. - What is the offset voltage of the TLV2474AQDRG4Q1?
The offset voltage is 1.6 mV. - What is the operating temperature range of the TLV2474AQDRG4Q1?
The operating temperature range is from -40°C to 125°C. - What type of package does the TLV2474AQDRG4Q1 come in?
The TLV2474AQDRG4Q1 comes in a 14-SOIC package. - Is the TLV2474AQDRG4Q1 suitable for automotive applications?
Yes, it is automotive-grade and suitable for various automotive applications. - What are some key features of the TLV2474AQDRG4Q1?
Key features include rail-to-rail input and output, high drive capability, low offset voltage, and a wide temperature range. - Can the TLV2474AQDRG4Q1 be used in industrial control systems?
Yes, it is suitable for industrial control systems due to its high precision and reliability. - Where can I find more detailed specifications and support for the TLV2474AQDRG4Q1?
You can find detailed specifications and support on the Texas Instruments website and through their technical support forums.
