Overview

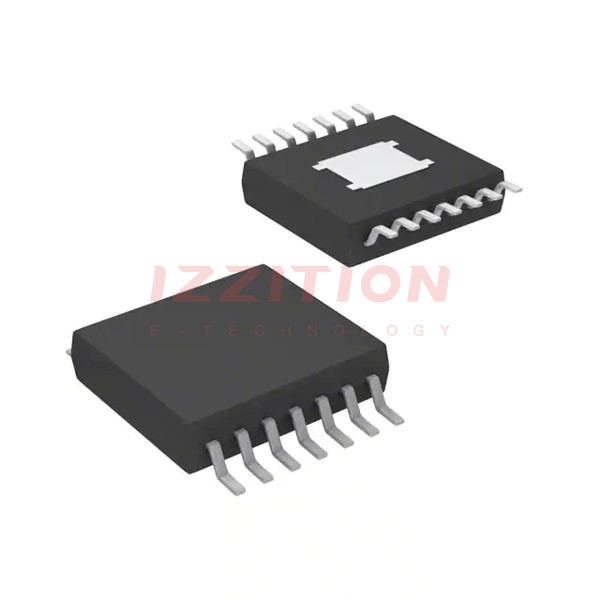

The TLV2474APWPRQ1 is a quad operational amplifier manufactured by Texas Instruments. It is designed for low-power, rail-to-rail input and output operations, making it suitable for a wide range of applications requiring high precision and low noise. This automotive-grade component is packaged in a 14-pin HTSSOP (PWP) package and operates within a voltage range of 6 volts with a bandwidth of 2.8 MHz and an offset voltage of 1.6 mV.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | Quad |
| Supply Voltage | 6 V |
| Bandwidth | 2.8 MHz |
| Offset Voltage | 1.6 mV |
| Input/Output Type | Rail-to-Rail |
| Package Type | HTSSOP (PWP) 14-pin |
| Operating Temperature Range | -40°C to 125°C (Automotive Grade) |
Key Features
- Low power consumption, making it energy-efficient.
- Rail-to-rail input and output capability for maximum signal range.
- High precision with low offset voltage (1.6 mV).
- Wide bandwidth of 2.8 MHz for high-frequency applications.
- Low noise and low input bias current for accurate signal processing.
- Automotive-grade reliability with an operating temperature range of -40°C to 125°C.
Applications
- Automotive systems: Suitable for various automotive applications due to its automotive-grade specifications.
- Industrial control systems: Ideal for precision control and measurement in industrial environments.
- Medical devices: Used in medical equipment requiring high precision and low noise.
- Consumer electronics: Applicable in audio and video equipment, and other consumer devices requiring low-power, high-precision amplification.
Q & A
- What is the supply voltage range of the TLV2474APWPRQ1? The supply voltage range is 6 volts.
- What is the bandwidth of the TLV2474APWPRQ1? The bandwidth is 2.8 MHz.
- What is the offset voltage of the TLV2474APWPRQ1? The offset voltage is 1.6 mV.
- What type of input/output does the TLV2474APWPRQ1 have? It has rail-to-rail input and output capability.
- In what package is the TLV2474APWPRQ1 available? It is available in a 14-pin HTSSOP (PWP) package.
- What is the operating temperature range of the TLV2474APWPRQ1? The operating temperature range is -40°C to 125°C.
- Is the TLV2474APWPRQ1 suitable for automotive applications? Yes, it is automotive-grade.
- What are some key features of the TLV2474APWPRQ1? It features low power consumption, high precision, low noise, and a wide bandwidth.
- Where can I find detailed specifications for the TLV2474APWPRQ1? Detailed specifications can be found on the Texas Instruments website and other electronic component distributors like Mouser and Digi-Key.
- What are some common applications of the TLV2474APWPRQ1? Common applications include automotive systems, industrial control systems, medical devices, and consumer electronics.
