Overview

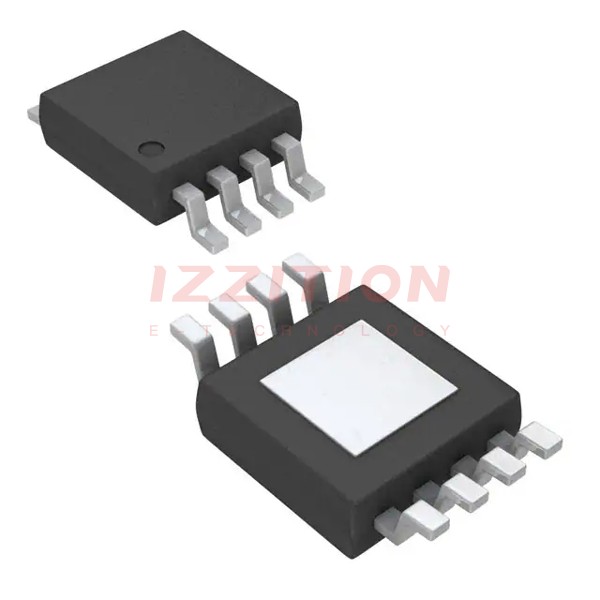

The TLV2472IDGN is a dual, 6-V, 2.8-MHz, rail-to-rail input/output operational amplifier produced by Texas Instruments. This device is part of the TLV247x family, which sets a new performance standard for supply current versus AC performance. The TLV2472IDGN is housed in an ultra-small HVSSOP (DGN) package with 8 pins, making it ideal for space-constrained applications. It offers high output drive capability and low power consumption, making it suitable for a variety of applications including sensor interfaces, portable medical equipment, and data acquisition circuits.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Package | HVSSOP (DGN) | - |
| Pins | 8 | - |
| Operating Temperature Range | -40 to 125 | °C |
| Gain-Bandwidth Product | 2.8 MHz | - |
| Supply Voltage Range | 2.7 V to 6 V | V |
| Supply Current (per channel) | 600 µA | µA |
| Input Bias Current | 2.5 pA | pA |
| Input Offset Voltage | 250 µV (typ) | µV |
| Output Drive Capability | ±10 mA at 180 mV, ±35 mA at 500 mV | mA |
| Shutdown Supply Current (per channel) | 350 nA at 3 V, 1000 nA at 5 V | nA |
Key Features
- CMOS Rail-To-Rail Input/Output
- Low Supply Current: 600 µA/channel
- Ultra-Low Power Shutdown Mode
- High Output Drive Capability: ±10 mA at 180 mV, ±35 mA at 500 mV
- Input Bias Current: 2.5 pA
- Input Offset Voltage: 250 µV (typ)
- Ultra-Small Packaging: HVSSOP (DGN) with 8 pins
Applications
The TLV2472IDGN is ideal for various applications due to its high performance and low power consumption. Key applications include:
- Sensor Interfaces
- Portable Medical Equipment
- Data Acquisition Circuits
Q & A
- What is the package type of the TLV2472IDGN?
The TLV2472IDGN is packaged in an HVSSOP (DGN) with 8 pins.
- What is the operating temperature range of the TLV2472IDGN?
The operating temperature range is -40°C to 125°C.
- What is the gain-bandwidth product of the TLV2472IDGN?
The gain-bandwidth product is 2.8 MHz.
- What is the supply voltage range of the TLV2472IDGN?
The supply voltage range is 2.7 V to 6 V.
- What is the typical input offset voltage of the TLV2472IDGN?
The typical input offset voltage is 250 µV.
- What is the output drive capability of the TLV2472IDGN?
The output drive capability is ±10 mA at 180 mV and ±35 mA at 500 mV.
- Does the TLV2472IDGN have a shutdown mode?
- What are some typical applications of the TLV2472IDGN?
- What is the input bias current of the TLV2472IDGN?
- Is the TLV2472IDGN suitable for low-voltage applications?
