Overview
The TLV171QDBVRQ1, manufactured by Texas Instruments, is a high-performance, low-power operational amplifier designed for cost-sensitive systems. This model is part of the TLVx171 series, which is renowned for its robust performance in a variety of general-purpose applications. The TLV171QDBVRQ1 is particularly suited for applications requiring a wide supply voltage range and low power consumption, making it an ideal choice for portable and battery-powered devices. Its market positioning targets industries such as consumer electronics, industrial automation, and automotive electronics, where reliability and efficiency are paramount. The unique selling points of the TLV171QDBVRQ1 include its ability to operate with a supply voltage range of 2.2V to 36V, its low quiescent current of 55 µA, and its robust performance in harsh environments, with an operating temperature range from -40°C to +125°C.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | 2.2 to 36 | V | |
| Quiescent Current | 55 | µA | |
| Operating Temperature Range | -40 to +125 | °C | |
| Output Type | Open Collector | ||
| Number of Channels | 1 | ||
| Response Time | 560 | ns | |
| Input Bias Current | 15 | nA | |
| Input Offset Voltage | 3.2 | mV | |
| Output Current per Channel | 20 | mA | |

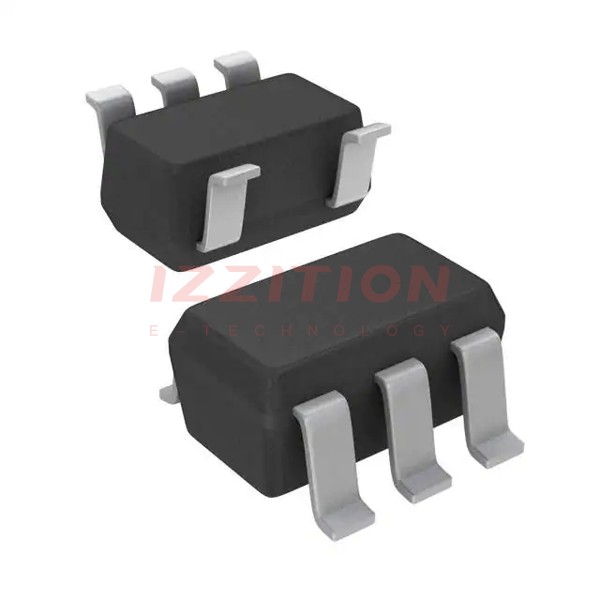

| Package | SOT-23-5 |
Key Features
- Wide supply voltage range from 2.2V to 36V, suitable for various applications.
- Low quiescent current of 55 µA, ideal for battery-powered devices.
- Robust performance in harsh environments with an operating temperature range from -40°C to +125°C.
- Open collector output type, providing flexibility in interfacing with other components.
- Fast response time of 560 ns, ensuring quick signal processing.
Applications
The TLV171QDBVRQ1 is widely used in various fields due to its versatile performance and reliability. In consumer electronics, it is employed in portable devices such as smartphones and tablets, where low power consumption is crucial. In industrial automation, it is used in control systems and sensors, benefiting from its wide supply voltage range and robust performance in harsh conditions. In automotive electronics, the TLV171QDBVRQ1 is utilized in safety systems and infotainment systems, where reliability and efficiency are essential. Its ability to operate in a wide temperature range and low power consumption makes it a preferred choice for these applications.
Q & A
1. What is the supply voltage range of the TLV171QDBVRQ1?
The supply voltage range is from 2.2V to 36V.
2. What is the quiescent current of the TLV171QDBVRQ1?
The quiescent current is 55 µA.
3. What is the operating temperature range of the TLV171QDBVRQ1?
The operating temperature range is from -40°C to +125°C.
4. What type of output does the TLV171QDBVRQ1 have?
It has an open collector output type.
5. How many channels does the TLV171QDBVRQ1 have?
It has one channel.
6. What is the response time of the TLV171QDBVRQ1?
The response time is 560 ns.
7. What is the input bias current of the TLV171QDBVRQ1?
The input bias current is 15 nA.
8. What is the input offset voltage of the TLV171QDBVRQ1?
The input offset voltage is 3.2 mV.
9. What is the output current per channel of the TLV171QDBVRQ1?
The output current per channel is 20 mA.
10. What package does the TLV171QDBVRQ1 come in?
It comes in a SOT-23-5 package.
