Overview
The TLV1508IPWR is a high-performance analog-to-digital converter (ADC) produced by Texas Instruments. This 10-bit ADC features a sampling rate of 200 kSPS and is designed for applications requiring a balance of AC performance and DC precision. It is packaged in a 20-pin TSSOP (Thin Shrink Small Outline Package) and offers multiple powerdown modes, including hardware, software, and auto powerdown. The device also supports programmable auto channel sweep, making it versatile for various data acquisition tasks.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 10 bits |
| Sampling Rate | 200 kSPS |
| Number of Channels | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |

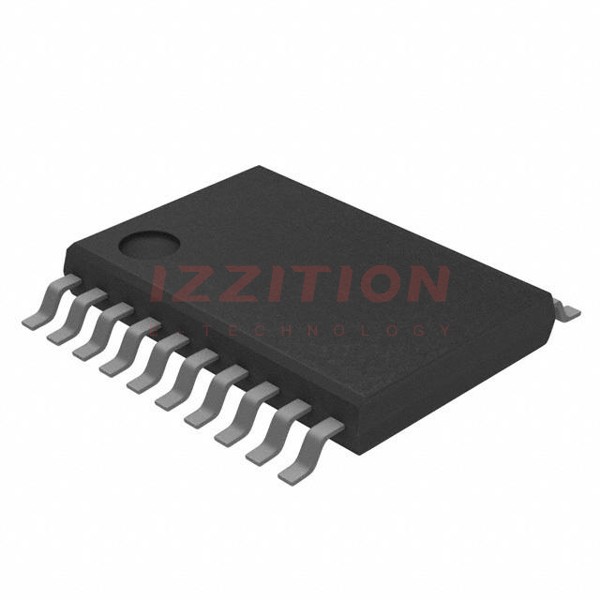

| Package Type | 20-pin TSSOP |
| Powerdown Modes | Hardware, Software, Auto |
Key Features
- High-precision 10-bit analog-to-digital conversion
- Sampling rate of 200 kSPS
- Eight single-ended input channels
- Programmable auto channel sweep
- Multiple powerdown modes: hardware, software, and auto powerdown
- SPI data interface for easy communication with microcontrollers
- Low power consumption
Applications
The TLV1508IPWR is suitable for a variety of applications, including data acquisition systems, industrial control systems, medical devices, and automotive systems. Its low power consumption and high precision make it ideal for battery-powered devices and systems requiring accurate analog-to-digital conversion.
Q & A
- What is the resolution of the TLV1508IPWR ADC?
The TLV1508IPWR has a resolution of 10 bits. - What is the sampling rate of the TLV1508IPWR?
The sampling rate is 200 kSPS. - How many input channels does the TLV1508IPWR have?
The TLV1508IPWR has 8 single-ended input channels. - What type of data interface does the TLV1508IPWR use?
The TLV1508IPWR uses an SPI data interface. - What are the powerdown modes available for the TLV1508IPWR?
The TLV1508IPWR supports hardware, software, and auto powerdown modes. - In what package is the TLV1508IPWR available?
The TLV1508IPWR is available in a 20-pin TSSOP package. - What is the primary advantage of the TLV1508IPWR in terms of power consumption?
The TLV1508IPWR offers low power consumption, making it suitable for battery-powered devices. - Can the TLV1508IPWR be used in industrial control systems?
Yes, the TLV1508IPWR is suitable for industrial control systems due to its high precision and reliability. - Is the TLV1508IPWR compatible with microcontrollers?
Yes, the TLV1508IPWR is compatible with microcontrollers through its SPI data interface. - What are some common applications of the TLV1508IPWR?
The TLV1508IPWR is commonly used in data acquisition systems, medical devices, automotive systems, and other applications requiring precise analog-to-digital conversion.
