TLIN1027DRBRQ1
  • Share:

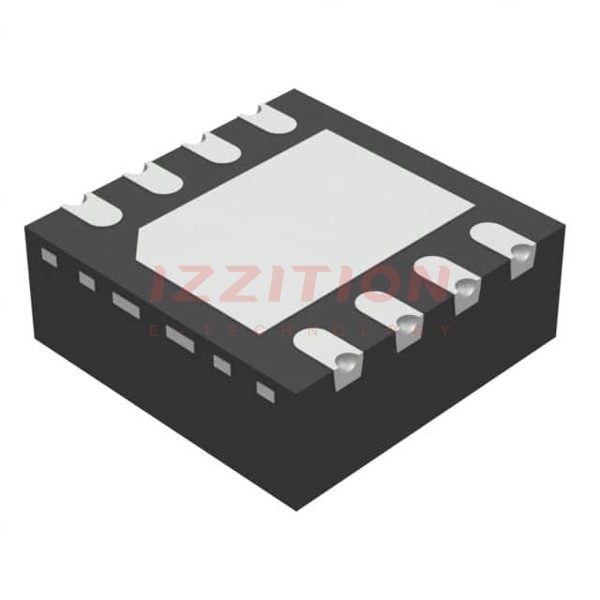

Texas Instruments TLIN1027DRBRQ1

Manufacturer No:
TLIN1027DRBRQ1
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC TRANSCEIVER 1/1 8VSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TLIN1027DRBRQ1 is a high-performance automotive LIN (Local Interconnect Network) physical layer transceiver produced by Texas Instruments. Designed to meet the stringent requirements of automotive applications, this component is part of the AEC-Q100 qualified series, ensuring reliability and robustness in harsh environments. It is widely used in automotive electronics for communication between various control units and sensors. The TLIN1027DRBRQ1 is particularly suitable for applications such as body electronics, lighting systems, and infotainment, offering a reliable and cost-effective solution for LIN network implementations.

Key Specifications

ParameterValueUnitNotes
Supply Voltage4V to 36VVOperating range
Data RateUp to 100 kbpsbpsLIN communication
Operating Temperature-40°C to 125°C°CAutomotive grade
PackageVSON-8-Surface mount
Receiver Hysteresis50 mVmVNoise immunity
ESD Protection±8 kVkVHBM

Key Features

  • Complies with LIN 2.2A and ISO/DIS 17987-4 standards
  • Integrated wake-up and protection features
  • Low electromagnetic emissions (EME)
  • Sleep mode for ultra-low power consumption
  • Robust ESD protection for automotive environments

Applications

The TLIN1027DRBRQ1 is ideal for use in automotive systems, including body electronics, lighting, and infotainment. Its ability to operate in a wide voltage range and withstand harsh environmental conditions makes it a reliable choice for LIN network implementations in vehicles. Additionally, its low power consumption and integrated protection features ensure efficient and safe operation in automotive applications.

Q & A

1. What is the operating voltage range of the TLIN1027DRBRQ1?

The TLIN1027DRBRQ1 operates within a voltage range of 4V to 36V.

2. What data rate does the TLIN1027DRBRQ1 support?

It supports data rates up to 100 kbps for LIN communication.

3. Is the TLIN1027DRBRQ1 suitable for automotive applications?

Yes, it is AEC-Q100 qualified and designed for automotive environments.

4. What is the package type of the TLIN1027DRBRQ1?

It comes in a VSON-8 surface mount package.

5. Does the TLIN1027DRBRQ1 support sleep mode?

Yes, it features a sleep mode for ultra-low power consumption.

6. What standards does the TLIN1027DRBRQ1 comply with?

It complies with LIN 2.2A and ISO/DIS 17987-4 standards.

7. What is the operating temperature range of the TLIN1027DRBRQ1?

It operates from -40°C to 125°C.

8. Does the TLIN1027DRBRQ1 have ESD protection?

Yes, it provides robust ESD protection up to ±8 kV (HBM).

9. What is the receiver hysteresis of the TLIN1027DRBRQ1?

The receiver hysteresis is 50 mV, ensuring noise immunity.

10. Can the TLIN1027DRBRQ1 be used in body electronics?

Yes, it is well-suited for body electronics, lighting, and infotainment systems in vehicles.

Product Attributes

Type:Transceiver
Protocol:LIN
Number of Drivers/Receivers:1/1
Duplex:-
Receiver Hysteresis:200 mV
Data Rate:20kbps
Voltage - Supply:4V ~ 36V
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:8-VDFN Exposed Pad
Supplier Device Package:8-SON (3x3)
0 Remaining View Similar

In Stock

$1.24
197

Please send RFQ , we will respond immediately.
