Overview

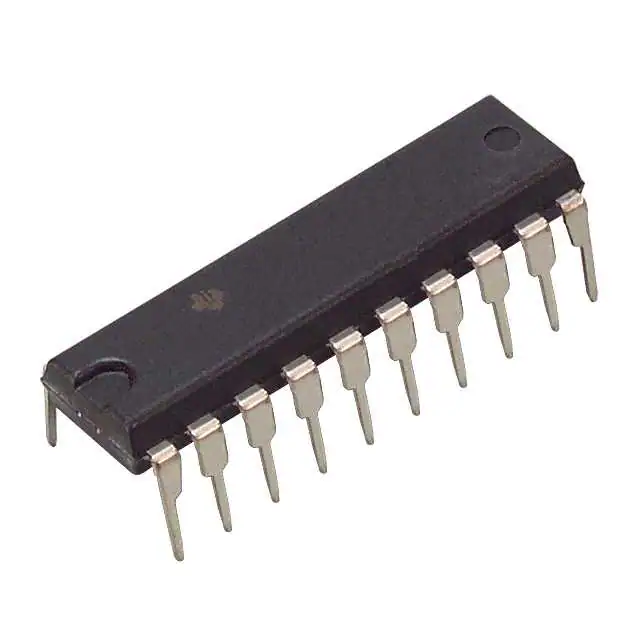

The TLC542ING4 is an 8-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. This component is designed for applications requiring high-speed data acquisition and conversion. It features an 11-channel single-ended input configuration and utilizes a SPI interface for communication. The TLC542ING4 is housed in a 20-pin PDIP package, making it suitable for a wide range of industrial and commercial applications. Its key strengths include a sampling rate of 25k samples per second, external reference voltage support, and operation within a temperature range of -40°C to 85°C. This ADC is particularly competitive in markets demanding reliable and efficient data conversion solutions.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Manufacturer | Texas Instruments | - | - |
| Model | TLC542ING4 | - | - |
| Resolution | 8 | bit | - |
| Sampling Rate | 25k | samples/sec | - |
| Input Channels | 11 | - | Single-ended |
| Data Interface | SPI | - | - |
| Configuration | MUX-S/H-ADC | - | - |
| A/D Converters | 1 | - | - |
| Architecture | SAR | - | - |
| Reference Type | External | - | - |
| Analog Supply Voltage | 5 | V | - |
| Digital Supply Voltage | 5 | V | - |
| Operating Temperature | -40 to 85 | °C | - |
| Package | 20-DIP | - | 7.62mm |
| RoHS Compliance | Yes | - | Lead-free |
Key Features
- 8-bit resolution for precise analog-to-digital conversion.
- High sampling rate of 25k samples per second for fast data acquisition.
- 11 single-ended input channels for versatile signal handling.
- SPI interface for efficient communication with microcontrollers or processors.
- External reference voltage support for flexible operation.
- Wide operating temperature range (-40°C to 85°C) for robust performance in harsh environments.
- 20-pin PDIP package for easy integration into various designs.
Applications
The TLC542ING4 is widely used in applications requiring accurate and efficient analog-to-digital conversion. It is particularly suitable for industrial automation, where it can handle multiple sensor inputs and provide reliable data conversion. In consumer electronics, it is used in devices such as digital multimeters and data loggers. Additionally, its robust design makes it ideal for automotive electronics, where it can operate reliably under extreme temperature conditions. The SPI interface also makes it compatible with a wide range of microcontrollers and processors, further expanding its application potential.
Q & A
1. What is the resolution of the TLC542ING4?
The TLC542ING4 has an 8-bit resolution.
2. What is the sampling rate of this ADC?
It supports a sampling rate of 25k samples per second.
3. How many input channels does it have?
It features 11 single-ended input channels.
4. What is the operating temperature range?
The TLC542ING4 operates within a temperature range of -40°C to 85°C.
5. What type of data interface does it use?
It uses a SPI interface for communication.
6. Is the TLC542ING4 RoHS compliant?
Yes, it is RoHS compliant and lead-free.
7. What is the package type of this ADC?
It comes in a 20-pin PDIP package.
8. Does it support external reference voltage?
Yes, it supports an external reference voltage.
9. What is the supply voltage for this component?
Both analog and digital supply voltages are 5V.
10. What are the typical applications of the TLC542ING4?
It is used in industrial automation, consumer electronics, and automotive electronics.
