Overview

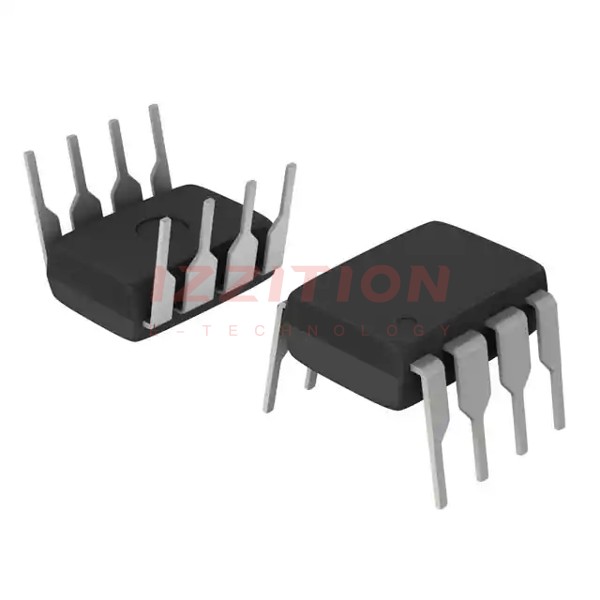

The TLC27L2CP-A, manufactured by Texas Instruments, is a dual-channel CMOS operational amplifier designed for precision applications. This IC is particularly noted for its low power consumption and high performance, making it suitable for a variety of circuit designs. The TLC27L2CP-A operates within a voltage range of 3V to 16V, ideal for single-supply systems, and is widely used in battery-powered applications due to its low power characteristics. Its high input impedance and low output resistance, combined with a wide input and output range, make it a preferred choice for designers and engineers in precision measurement and control systems.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 2 | Dual operational amplifier | |
| Total Supply Voltage (Max) | 16 | V | |
| Total Supply Voltage (Min) | 3 | V | |
| GBW (Typ) | 0.085 | MHz | |
| Slew Rate (Typ) | 0.03 | V/μs | |
| Vos (offset voltage @25 C) (Max) | 5 | mV | |
| Iq per channel (Typ) | 0.01 | mA | |
| Vn at 1 kHz (Typ) | 68 | nV/√Hz | |
| Operating Temperature Range | 0 to 70 | °C |
Key Features
- Low power consumption: Ideal for battery-powered applications.
- High input impedance and low output resistance: Enhances signal integrity.
- Wide input and output range: Versatile for various circuit designs.
- Low noise and high CMRR: Suitable for precision applications.
Applications
The TLC27L2CP-A is extensively used in precision measurement and control systems, particularly in applications requiring high accuracy and low power consumption. Its typical applications include voltage followers, comparators, filters, power amplifiers, and sensor signal processing. In measurement and control systems, it is used to amplify sensor signals for accurate measurements and controls. Its low power consumption also makes it suitable for remote and inaccessible battery-powered applications.
Q & A
What is the operating voltage range of TLC27L2CP-A?
The operating voltage range is from 3V to 16V.
Can TLC27L2CP-A be used in battery-powered applications?
Yes, its low power consumption makes it ideal for battery-powered applications.
What is the typical slew rate of TLC27L2CP-A?
The typical slew rate is 0.03 V/μs.
What are the key features of TLC27L2CP-A?
Key features include low power consumption, high input impedance, low output resistance, and a wide input and output range.
What are the typical applications of TLC27L2CP-A?
Typical applications include voltage followers, comparators, filters, power amplifiers, and sensor signal processing.
What is the typical GBW of TLC27L2CP-A?
The typical GBW is 0.085 MHz.
What is the maximum offset voltage at 25°C?
The maximum offset voltage at 25°C is 5 mV.
What is the typical input bias current?
The typical input bias current is 60 pA.
What is the operating temperature range of TLC27L2CP-A?
The operating temperature range is from 0°C to 70°C.
Is TLC27L2CP-A suitable for precision applications?
Yes, its low noise and high CMRR make it suitable for precision applications.
