Overview

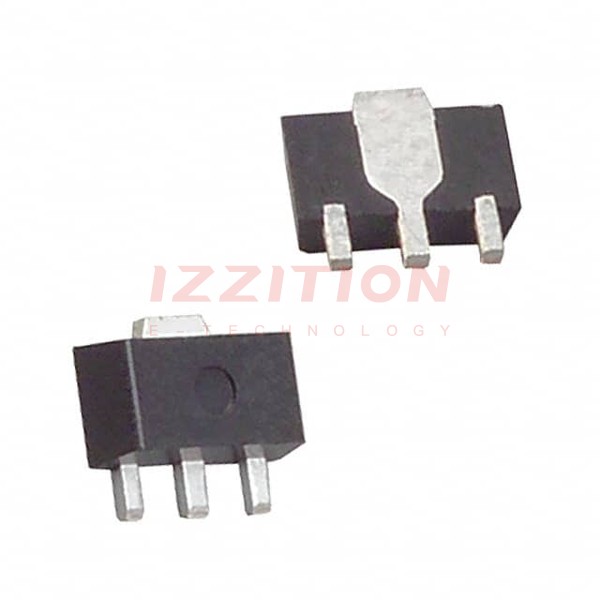

The TL432CPK, manufactured by Texas Instruments, is a precision adjustable shunt regulator integrated circuit (IC). This product is designed for applications requiring accurate voltage references and is widely used in power supply systems. Its compact SOT-89-3 package makes it suitable for space-constrained designs. The TL432CPK is particularly valued for its thermal stability, wide operating current range, and precise voltage regulation capabilities, making it a competitive choice in the voltage reference market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Output Voltage Range | 2.495 - 36 | V | Adjustable |
| Tolerance | ±2% | Precision | |
| Temperature Coefficient | 92 | ppm/°C | Thermal stability |
| Input Voltage Range | 2.495 - 36 | V | Wide range |
| Cathode Current | 1 | mA | Low current operation |
| Output Current | 100 | mA | High current capability |
| Package | SOT-89-3 | Compact design |
Key Features
- Precision adjustable shunt regulator for accurate voltage references.
- Wide operating voltage range from 2.495V to 36V.
- Thermal stability with a temperature coefficient of 92ppm/°C.
- Compact SOT-89-3 package suitable for space-constrained applications.
- Low cathode current of 1mA for energy-efficient designs.
Applications
The TL432CPK is commonly used in power supply systems, voltage regulation circuits, and precision voltage reference applications. Its precise voltage regulation and thermal stability make it ideal for use in industrial automation, consumer electronics, and automotive electronics. Additionally, its compact package and wide operating range enhance its versatility in various electronic designs.
Q & A
What is the output voltage range of the TL432CPK?
The output voltage range of the TL432CPK is adjustable from 2.495V to 36V.
What is the tolerance of the TL432CPK?
The tolerance of the TL432CPK is ±2%.
What is the temperature coefficient of the TL432CPK?
The temperature coefficient of the TL432CPK is 92ppm/°C.
What is the input voltage range of the TL432CPK?
The input voltage range of the TL432CPK is from 2.495V to 36V.
What is the cathode current of the TL432CPK?
The cathode current of the TL432CPK is 1mA.
What is the output current capability of the TL432CPK?
The output current capability of the TL432CPK is 100mA.
What package does the TL432CPK come in?
The TL432CPK comes in a compact SOT-89-3 package.
What are the typical applications of the TL432CPK?
The TL432CPK is typically used in power supply systems, voltage regulation circuits, and precision voltage reference applications.
Is the TL432CPK suitable for automotive electronics?
Yes, the TL432CPK's thermal stability and precise voltage regulation make it suitable for automotive electronics.
What makes the TL432CPK competitive in the market?
The TL432CPK's precision voltage regulation, wide operating range, and compact package make it a competitive choice in the voltage reference market.
