Overview

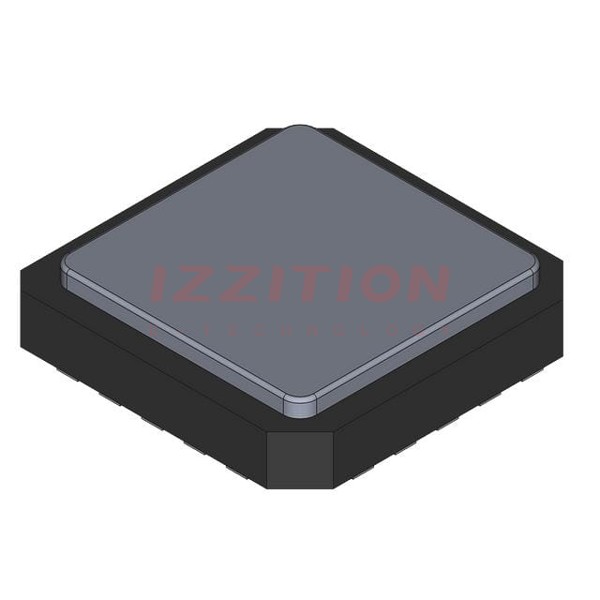

The TL064MFK, manufactured by Texas Instruments, is a low-power JFET-input quad operational amplifier housed in a 20-LCCC package. This component is categorized under analog mixed-signal ICs and is specifically designed for amplifier circuits. Its primary market positioning targets applications requiring low power consumption and high input impedance, making it ideal for precision analog signal processing in various industries. The TL064MFK stands out for its ability to operate over a wide temperature range from -55°C to 125°C, ensuring reliability in harsh environments.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Package | 20-LCCC | - | Ceramic |
| Operating Temperature | -55 to 125 | °C | - |
| Input Offset Voltage | 15000 | µV | Max |
| Bandwidth | 1 | MHz | - |
| Power Consumption | Low | - | JFET input |
Key Features
- Low power consumption due to JFET input technology.
- High input impedance, beneficial for signal integrity in high-impedance circuits.
- Wide operating temperature range ensures performance in extreme conditions.
- Quad amplifier configuration allows for multiple signal processing tasks simultaneously.
Applications
The TL064MFK is extensively used in applications requiring precise analog signal amplification and processing. Key areas include industrial automation for sensor signal conditioning, audio processing in consumer electronics, and control systems in automotive electronics. Its low power and high input impedance also make it suitable for battery-powered devices and portable instruments.
Q & A
What is the operating temperature range of the TL064MFK?
The TL064MFK can operate from -55°C to 125°C.
What type of package does the TL064MFK use?
It uses a 20-LCCC ceramic package.
What is the maximum input offset voltage for the TL064MFK?
The maximum input offset voltage is 15000 µV.
What is the bandwidth of the TL064MFK?
The bandwidth is 1 MHz.
What are the key features of the TL064MFK?
Key features include low power consumption, high input impedance, and a wide operating temperature range.
In what applications is the TL064MFK commonly used?
It is used in industrial automation, consumer electronics, and automotive control systems.
What makes the TL064MFK suitable for battery-powered devices?
Its low power consumption makes it ideal for battery-powered applications.
Can the TL064MFK handle multiple signal processing tasks?
Yes, its quad amplifier configuration allows it to handle multiple tasks simultaneously.
What is the significance of the JFET input in the TL064MFK?
The JFET input provides high input impedance and low power consumption.
Is the TL064MFK reliable in harsh environments?
Yes, its wide operating temperature range ensures reliability in extreme conditions.
