Overview

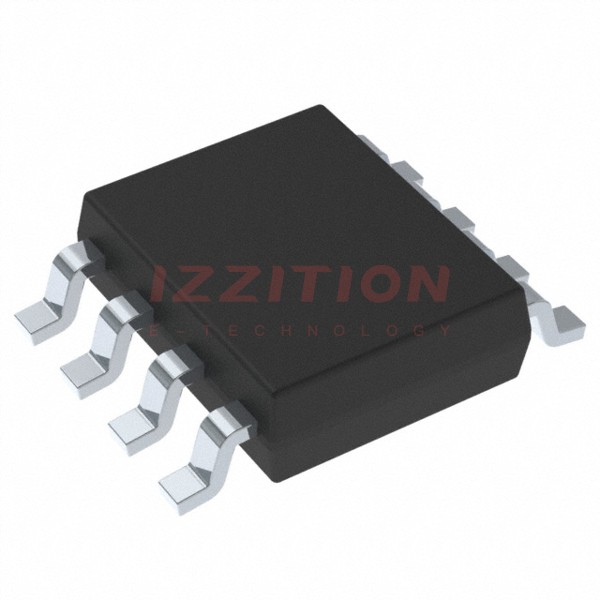

The THS3092, produced by Texas Instruments, is a dual high-voltage, low-distortion, high-speed current-feedback operational amplifier. It is designed to operate over a wide supply range of ±5 V to ±15 V, making it suitable for applications that require large, linear output signals. The THS3092 is particularly ideal for high-voltage arbitrary waveform driver applications, Pin drivers, Power FET drivers, and VDSL line drivers due to its low distortion, high slew rate, and wide bandwidth.
Key Specifications
| Parameter | Typical Value | Unit | Conditions |
|---|---|---|---|
| Supply Voltage Range | ±5 V to ±15 V | V | |
| Total Harmonic Distortion (HD2) | -66 dBc at 10 MHz, RL = 100 Ω | dBc | G = 5, RF = 715 Ω, VS = ±15 V |
| Total Harmonic Distortion (HD3) | -76 dBc at 10 MHz, RL = 100 Ω | dBc | G = 5, RF = 715 Ω, VS = ±15 V |
| Noninverting Current Noise | 13 pA/√Hz | pA/√Hz | |
| Inverting Current Noise | 13 pA/√Hz | pA/√Hz | |
| Voltage Noise | 2 nV/√Hz | nV/√Hz | |
| Slew Rate | 5700 V/µs (G = 5, VO = 20 VPP) | V/µs | |
| Bandwidth | 160 MHz (G = 5, RL = 100 Ω) | MHz | |
| Output Current Drive | ±250 mA | mA | |
| Operating Temperature Range | -40°C to 85°C | °C | |
| Maximum Junction Temperature | 150°C | °C |
Key Features
- Low Distortion: High performance with total harmonic distortion as low as -66 dBc at 10 MHz.
- Low Noise: Noninverting and inverting current noise of 13 pA/√Hz, and voltage noise of 2 nV/√Hz.
- High Slew Rate: 5700 V/µs (G = 5, VO = 20 VPP) for fast signal transitions.
- Wide Bandwidth: Up to 160 MHz (G = 5, RL = 100 Ω) for high-frequency applications.
- High Output Current Drive: Capable of driving ±250 mA into high-resistance and high-capacitance loads.
- Wide Supply Range: Operates over a supply range of ±5 V to ±15 V.
- Power-Down Feature (THS3096 only): Reduces quiescent current to 500 µA in standby mode.
- High-Voltage Arbitrary Waveform Driver: Ideal for applications requiring large voltage swings.
- Pin Driver and Power FET Driver: Suitable for driving high-resistance and high-capacitance loads.
- VDSL Line Driver: Appropriate for very-high-bit-rate digital subscriber line (VDSL) applications.
Applications
- High-Voltage Arbitrary Waveform Drivers: For generating precise and high-voltage waveforms.
- Pin Drivers: Driving high-resistance and high-capacitance loads in various industrial and medical applications.
- Power FET Drivers: Controlling power FETs in power management and motor control systems.
- VDSL Line Drivers: For very-high-bit-rate digital subscriber line (VDSL) applications requiring high signal integrity.
Q & A
- What is the supply voltage range of the THS3092?
The THS3092 operates over a supply range of ±5 V to ±15 V.
- What is the total harmonic distortion of the THS3092 at 10 MHz?
The total harmonic distortion (HD2) is as low as -66 dBc at 10 MHz with RL = 100 Ω.
- What is the slew rate of the THS3092?
The slew rate is 5700 V/µs (G = 5, VO = 20 VPP).
- What is the bandwidth of the THS3092?
The bandwidth is up to 160 MHz (G = 5, RL = 100 Ω).
- What is the maximum output current drive of the THS3092?
The THS3092 can drive up to ±250 mA.
- Does the THS3092 have a power-down feature?
No, the power-down feature is available only in the THS3096 model.
- What are the typical applications of the THS3092?
High-voltage arbitrary waveform drivers, Pin drivers, Power FET drivers, and VDSL line drivers.
- What is the operating temperature range of the THS3092?
The operating temperature range is -40°C to 85°C.
- What is the maximum junction temperature of the THS3092?
The maximum junction temperature is 150°C, but for long-term reliability, it should be kept below 125°C.
- How does the PowerPAD feature enhance the THS3092?
The PowerPAD acts as a heatsink and must be connected to a thermally dissipating plane for proper power dissipation.
