Overview

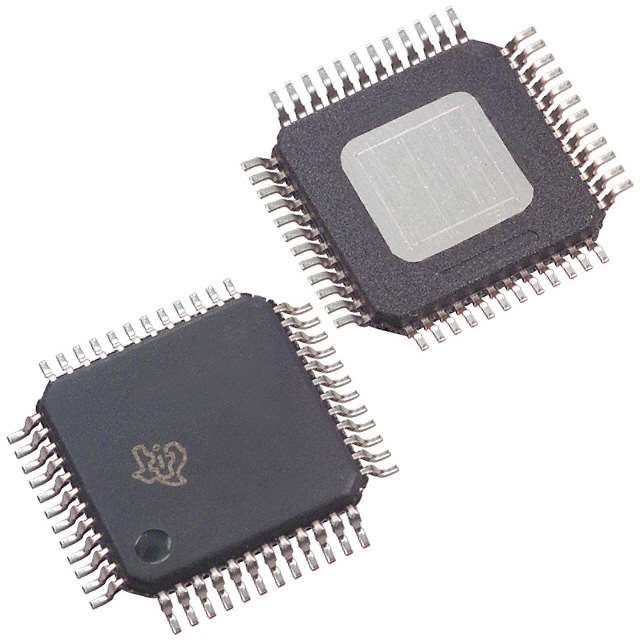

The THS1408MPHPEP is a high-performance, 14-bit analog-to-digital converter (ADC) produced by Texas Instruments. This single-channel, differential input ADC is designed for high-speed applications, offering a sampling rate of up to 8 million samples per second (MSPS). It is particularly suited for use in digital signal processing (DSP) and microprocessor (uP) interfacing environments.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Sampling Rate | Up to 8 MSPS |
| Input Type | Differential |
| Temperature Range | -55°C to 125°C (M-Temp) |
| Power Supply | Single 5V supply |
| Interface | DSP/uP compatible |
Key Features
- High-speed sampling rate of up to 8 MSPS
- 14-bit resolution for high accuracy
- Differential input for improved noise rejection
- DSP/uP compatible interface for seamless integration
- Single 5V power supply for simplicity and efficiency
- Wide operating temperature range (-55°C to 125°C) for harsh environments
Applications
The THS1408MPHPEP is suitable for a variety of high-speed data acquisition and signal processing applications, including:
- Medical imaging and diagnostics
- Aerospace and defense systems
- Industrial automation and control systems
- High-speed data acquisition systems
- DSP and uP-based systems requiring high-speed ADCs
Q & A
- What is the resolution of the THS1408MPHPEP ADC?
The THS1408MPHPEP has a resolution of 14 bits. - What is the maximum sampling rate of the THS1408MPHPEP?
The maximum sampling rate is up to 8 million samples per second (MSPS). - What type of input does the THS1408MPHPEP support?
The THS1408MPHPEP supports differential inputs. - What is the operating temperature range of the THS1408MPHPEP?
The operating temperature range is -55°C to 125°C (M-Temp). - What is the power supply requirement for the THS1408MPHPEP?
The THS1408MPHPEP requires a single 5V power supply. - Is the THS1408MPHPEP compatible with DSP and uP systems?
Yes, the THS1408MPHPEP is designed to be compatible with DSP and uP systems. - What are some common applications for the THS1408MPHPEP?
Common applications include medical imaging, aerospace and defense systems, industrial automation, and high-speed data acquisition systems. - How does the differential input of the THS1408MPHPEP improve performance?
The differential input improves noise rejection and signal integrity. - Can the THS1408MPHPEP operate in harsh environments?
Yes, it can operate in a wide temperature range, making it suitable for harsh environments. - Where can I find detailed specifications and datasheets for the THS1408MPHPEP?
Detailed specifications and datasheets can be found on the Texas Instruments official website and other authorized distributors like Digi-Key, Mouser, etc.
