Overview

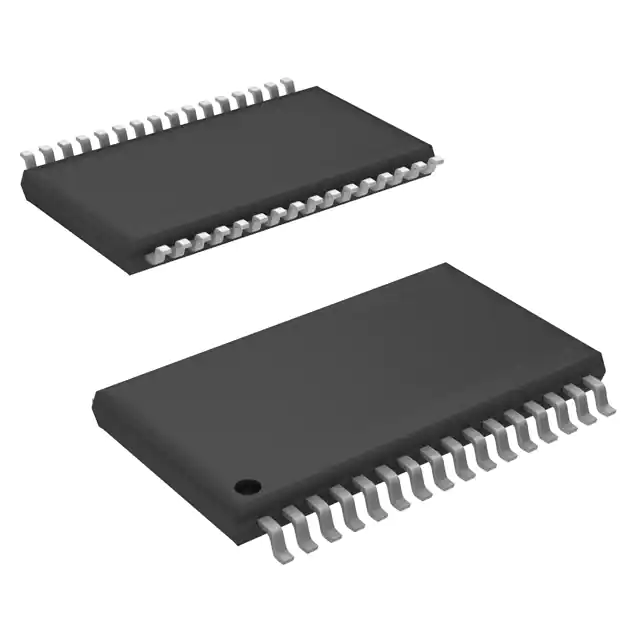

The THS1206MDAREP is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Texas Instruments. This component is designed for simultaneous sampling of multiple channels, making it ideal for applications requiring precise and synchronized data acquisition. The ADC features a pipelined architecture and includes an integrated 16x FIFO, which enhances data handling and reduces the load on the host processor. It is packaged in a 32-pin TSSOP (DA) package, ensuring compactness and ease of integration into various systems.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | 6 Msps (Mega Samples Per Second) |
| Number of Channels | 2 or 4 (configurable) |
| Input Type | Analog |
| Architecture | Pipelined |
| FIFO Depth | 16x |
| Package Type | 32-TSSOP (DA) |
| Operating Temperature Range | Extended temperature range, compliant with JEDEC and industry standards |
Key Features
- Simultaneous sampling of multiple channels, ensuring synchronized data acquisition.
- High-speed sampling rate of 6 Msps.
- Pipelined architecture for efficient data conversion.
- Integrated 16x FIFO to buffer data and reduce host processor load.
- Configurable for 2 or 4 input channels.
- Compact 32-pin TSSOP (DA) package for easy integration.
- Compliance with JEDEC and industry standards for reliable operation over an extended temperature range.
Applications
The THS1206MDAREP is suitable for a variety of applications that require high-speed, simultaneous sampling of multiple analog channels. These include:
- Medical imaging and diagnostics.
- Industrial automation and control systems.
- Aerospace and defense systems.
- High-speed data acquisition systems.
- Test and measurement equipment.
Q & A
- What is the resolution of the THS1206MDAREP ADC? The resolution of the THS1206MDAREP is 12 bits.
- What is the maximum sampling rate of the THS1206MDAREP? The maximum sampling rate is 6 Msps.
- How many input channels can the THS1206MDAREP support? The THS1206MDAREP can support either 2 or 4 input channels, depending on the configuration.
- What type of architecture does the THS1206MDAREP use? The THS1206MDAREP uses a pipelined architecture.
- Does the THS1206MDAREP have an integrated FIFO? Yes, it has an integrated 16x FIFO.
- In what package is the THS1206MDAREP available? The THS1206MDAREP is available in a 32-pin TSSOP (DA) package.
- What is the operating temperature range of the THS1206MDAREP? The THS1206MDAREP operates over an extended temperature range, compliant with JEDEC and industry standards.
- What are some typical applications of the THS1206MDAREP? Typical applications include medical imaging, industrial automation, aerospace and defense systems, high-speed data acquisition systems, and test and measurement equipment.
- Is the THS1206MDAREP suitable for simultaneous sampling of multiple channels? Yes, the THS1206MDAREP is designed for simultaneous sampling of multiple channels.
