Overview
The THS10064IDAG4, manufactured by Texas Instruments, is a 10-bit, 6 MSPS (Mega Samples Per Second) analog-to-digital converter (ADC) designed for high-speed and low-power applications. This CMOS device features a multistage pipelined architecture, ensuring high sample rates with minimal power consumption. It is particularly suited for applications in radar, imaging, high-speed data acquisition, and communications due to its speed, resolution, and single-supply operation. The device supports simultaneous sampling of four analog inputs, which can be configured as single-ended or differential signals, or a combination of both.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Resolution | 10 | - | - | Bits |
| Sampling Rate | - | 6 | - | MSPS |
| Analog Input Channels | 4 | - | - | - |
| Differential Nonlinearity Error (DNL) | ±1 | - | - | LSB |
| Integral Nonlinearity Error (INL) | ±1.5 | - | - | LSB |
| Signal-to-Noise and Distortion Ratio (SINAD) | 56 | 59 | - | dB |
| Analog Supply Voltage (AVDD) | 4.75 | 5 | 5.25 | V |
| Digital Supply Voltage (DVDD/BVDD) | 3 | 3.3 | 5.25 | V |
| Power Consumption | - | 216 | - | mW |
| Operating Temperature Range | -40 | - | 85 | °C |
Key Features
- High-Speed 6 MSPS ADC
- 4 Analog Inputs with simultaneous sampling capability for single-ended or differential signals
- Auto-Scan Mode for 2, 3, or 4 inputs
- 3-V or 5-V Digital Interface Compatible
- Low Power: 216 mW Max
- 5-V Analog Single Supply Operation
- Internal Voltage References with 50 PPM/°C and ±5% Accuracy
- Glueless DSP Interface and Parallel µC/DSP Interface
- Integrated 16-word deep FIFO for improved data transfers
- Available in TSSOP Package and pin compatible with 12-Bit THS1206
Applications
- Radar Applications
- Communications
- Control Applications
- High-Speed DSP Front-End
- Automotive Applications
- Imaging and High-Speed Data Acquisition
Q & A
- What is the sampling rate of the THS10064IDAG4?
The THS10064IDAG4 has a sampling rate of 6 MSPS.
- How many analog input channels does the THS10064IDAG4 have?
The device has 4 analog input channels that can be configured as single-ended or differential signals.
- What is the resolution of the THS10064IDAG4?
The resolution of the THS10064IDAG4 is 10 bits.
- What are the operating temperature ranges for the THS10064IDAG4?
The device operates from -40°C to 85°C.
- Does the THS10064IDAG4 support external reference voltages?
- What is the power consumption of the THS10064IDAG4?
The maximum power consumption is 216 mW.
- What type of interface does the THS10064IDAG4 support?
The device supports glueless DSP and parallel µC/DSP interfaces.
- Does the THS10064IDAG4 have an integrated FIFO?
- What is the typical signal-to-noise and distortion ratio (SINAD) of the THS10064IDAG4?
The typical SINAD is 59 dB.

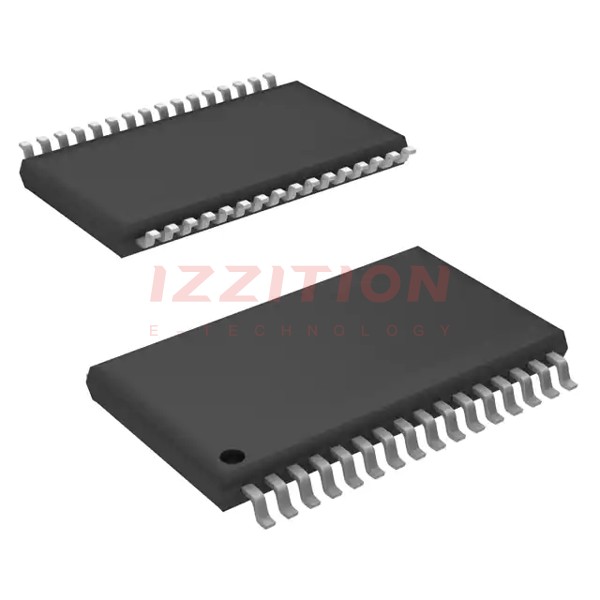

- In what package is the THS10064IDAG4 available?
The device is available in a TSSOP package.
