Overview
The SN75ALS181NSRG4 is a differential driver and receiver pair produced by Texas Instruments. This integrated circuit is designed to meet the requirements of RS-422 and RS-485 interfaces, providing reliable and efficient data transmission over long distances. Although the SN75ALS181NSRG4 is currently obsolete and no longer manufactured, it remains relevant for legacy systems and applications where compatibility with older designs is necessary.
Key Specifications
| Specification | Value |
|---|---|

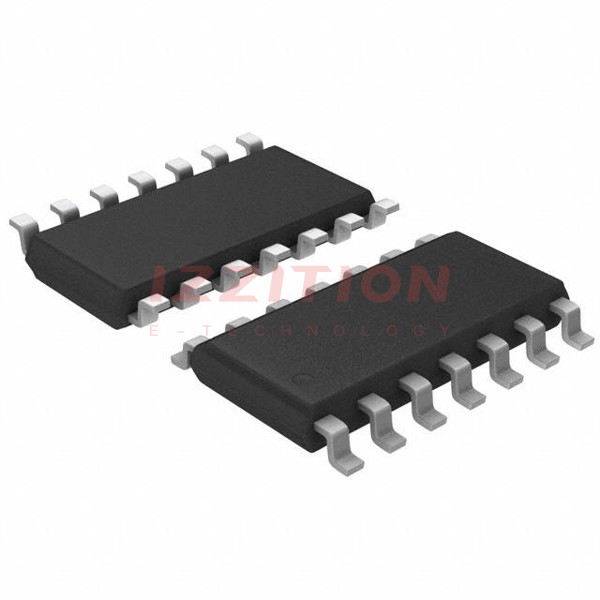

| Package Type | SOP (NS) with 14 pins |
| Operating Temperature Range | 0°C to 70°C |
| Interface Type | RS-422/RS-485 |
| Package Quantity | Carrier 2,000 (LARGE T&R) |
Key Features
- Differential driver and receiver pair for RS-422 and RS-485 interfaces.
- Operates over a temperature range of 0°C to 70°C.
- Packaged in a 14-pin SOP (NS) package.
- Designed for reliable data transmission over long distances.
Applications
The SN75ALS181NSRG4 is suitable for various applications requiring reliable serial data communication, including industrial control systems, data acquisition systems, and any environment where RS-422 or RS-485 interfaces are used. It is particularly useful in scenarios where noise immunity and long-distance data transmission are critical.
Q & A
- What is the SN75ALS181NSRG4 used for? The SN75ALS181NSRG4 is used as a differential driver and receiver pair for RS-422 and RS-485 interfaces.
- What is the operating temperature range of the SN75ALS181NSRG4? The operating temperature range is 0°C to 70°C.
- What type of package does the SN75ALS181NSRG4 come in? It comes in a 14-pin SOP (NS) package.
- Is the SN75ALS181NSRG4 still in production? No, the SN75ALS181NSRG4 is obsolete and no longer manufactured.
- What are some common applications for the SN75ALS181NSRG4? Common applications include industrial control systems, data acquisition systems, and any environment requiring RS-422 or RS-485 interfaces.
- What are the key features of the SN75ALS181NSRG4? Key features include differential driver and receiver functionality, operation over a wide temperature range, and reliable data transmission over long distances.
- How many pins does the SN75ALS181NSRG4 have? The SN75ALS181NSRG4 has 14 pins.
- What is the package quantity for the SN75ALS181NSRG4? The package quantity is typically 2,000 units per carrier (LARGE T&R).
- Where can I find substitutes for the SN75ALS181NSRG4? You can find recommended substitutes from the manufacturer or through distributors like Digi-Key and Mouser.
- What are the benefits of using the SN75ALS181NSRG4 in legacy systems? The SN75ALS181NSRG4 provides compatibility with older designs and ensures reliable data transmission in existing systems.
