Overview
The SN74LVTH125PWG4, produced by Texas Instruments, is a quad buffer/line driver with 3-state outputs. This device is designed for low-voltage operation, specifically at 3.3 V, but it also supports mixed-mode signal operation, allowing it to interface with 5-V system environments. It features independent line drivers, each with 3-state outputs controlled by the output-enable (OE) inputs. The device is fully specified for hot-insertion applications and supports partial power-down mode operation.
Key Specifications
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Supply Voltage (VCC) | 2.7 | 3.6 | V |
| High-Level Input Voltage (VIH) | 2 | 2 | V |
| Low-Level Input Voltage (VIL) | 0.8 | 0.8 | V |
| Input Voltage (VI) | 0 | 5.5 | V |
| High-Level Output Current (IOH) | -24 | -32 | mA |
| Low-Level Output Current (IOL) | 48 | 64 | mA |
| Operating Temperature Range (TA) | -40 | 85 | °C |
| Input Transition Rise or Fall Rate | 10 | 10 | ns/V |
| Power-Up Ramp Rate | 200 | 200 | µs/V |
Key Features
- Supports mixed-mode signal operation (5-V input and output voltages with 3.3-V VCC)
- Supports unregulated battery operation down to 2.7 V
- Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
- Ioff and power-up 3-state support for hot insertion
- Bus hold on data inputs eliminates the need for external pull-up/pull-down resistors
- Latch-up performance exceeds 500 mA per JESD 17
- ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A) and 200-V Machine Model (A115-A)
- Direct interface with TTL levels
- Overvoltage tolerant inputs to 5.5 V
Applications
- Tablets
- Smartphones
- Personal Computers
- Industrial and Automotive systems
Q & A
- What is the operating voltage range of the SN74LVTH125PWG4? The operating voltage range is from 2.7 V to 3.6 V.
- What is the maximum operating temperature of the SN74LVTH125PWG4? The maximum operating temperature is 85°C.
- Does the SN74LVTH125PWG4 support hot insertion? Yes, it supports hot insertion with Ioff and power-up 3-state.
- What is the output drive capability of the SN74LVTH125PWG4? The output drive capability is +64 mA and -32 mA.
- Is the SN74LVTH125PWG4 ESD protected? Yes, it exceeds JESD 22 standards with 2000-V Human-Body Model and 200-V Machine Model.
- What is the purpose of the bus hold feature in the SN74LVTH125PWG4? The bus hold feature eliminates the need for external pull-up/pull-down resistors by holding unused or undriven inputs at a valid logic state.
- Can the SN74LVTH125PWG4 be used in partial power-down mode? Yes, it supports partial power-down mode operation using Ioff circuitry.

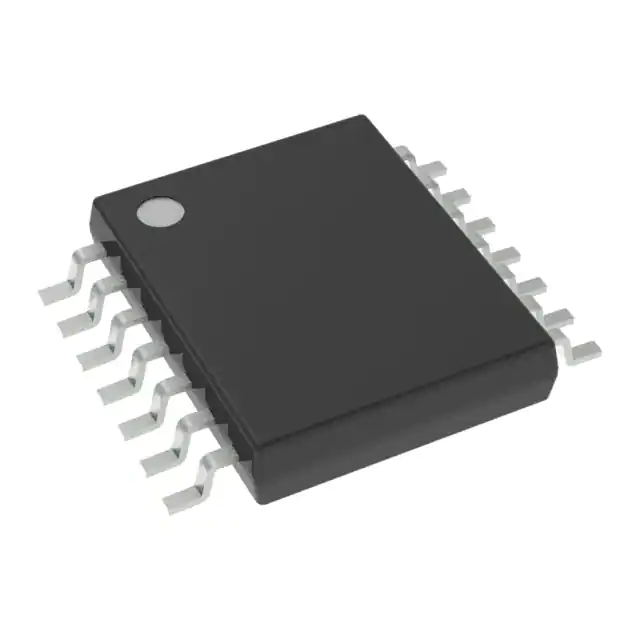

- What is the package type of the SN74LVTH125PWG4? The package type is TSSOP (Thin Shrink Small Outline Package) with 14 pins.
- Is the SN74LVTH125PWG4 RoHS compliant? Yes, it is RoHS compliant.
- What is the maximum input transition rise or fall rate for the SN74LVTH125PWG4? The maximum input transition rise or fall rate is 10 ns/V.
