Overview

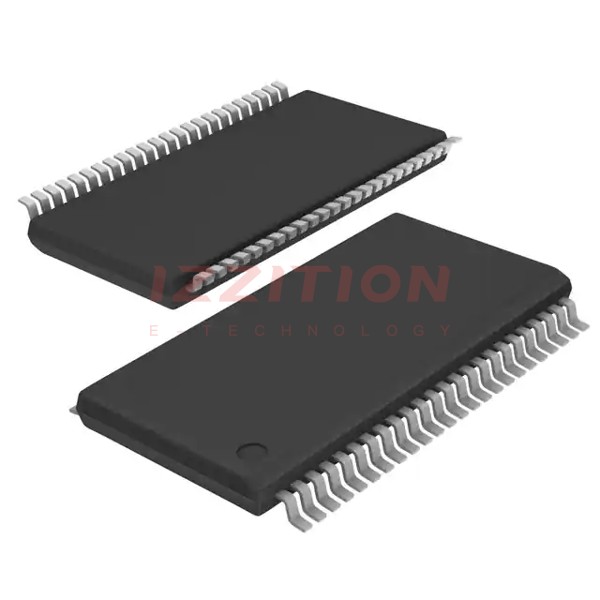

The SN74LVT16244BDGVR is a 16-bit buffer and line driver produced by Texas Instruments. This component is part of the LVT family and is designed for low-voltage operation, specifically between 2.7 V and 3.6 V. It features TTL-compatible CMOS inputs and 3-state outputs, making it versatile for various digital logic applications. The device is packaged in a 48-pin TVSOP (Thin Very Small Outline Package) and operates over a temperature range of -40°C to 85°C, making it suitable for industrial environments.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number | SN74LVT16244BDGVR |
| Package Type | 48-TVSOP (DGV) |
| Number of Pins | 48 |
| Operating Temperature Range (°C) | -40 to 85 |
| Supply Voltage Range (V) | 2.7 to 3.6 |
| Supply Current - Max (mA) | 5 |
| Output Type | 3-State |
| Propagation Delay (ns) | 3.7 |
| Output Low Current - Max (mA) | 64 |
| ESD Protection | 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model |
Key Features
- Member of the Texas Instruments Widebus Family, utilizing Advanced BiCMOS Technology (ABT) for 3.3-V operation and low static-power dissipation.
- Supports mixed-mode signal operation, allowing 5-V input and output voltages with a 3.3-V VCC.
- Supports unregulated battery operation down to 2.7 V.
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C.
- Ioff and power-up 3-state support for hot insertion.
- Latch-up performance exceeds 100 mA per JESD 78, Class II.
- ESD protection exceeds JESD 22 standards.
Applications
The SN74LVT16244BDGVR is suitable for a variety of digital logic applications, particularly in systems that require low-voltage operation and TTL-compatible interfaces. It can be used in:
- Computer peripherals and interfaces
- Industrial control systems
- Telecommunication equipment
- Data communication systems
- Any application requiring 3-state outputs and low-voltage operation
