Overview

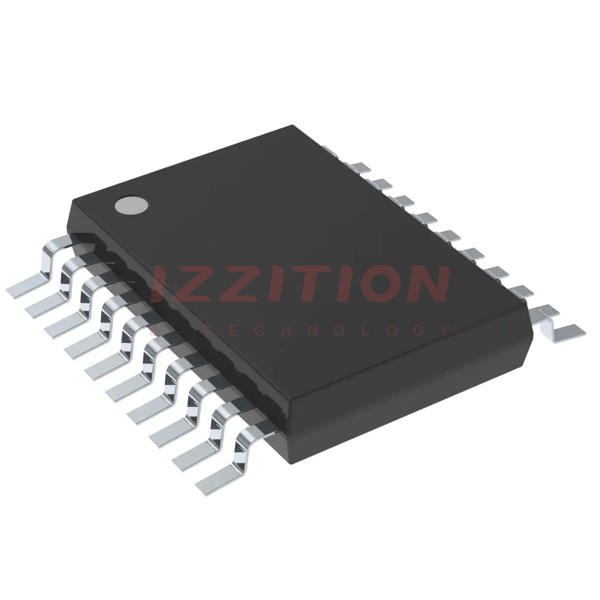

The SN74LVC8T245MDWREP is a high-performance, 8-bit dual-supply bus transceiver manufactured by Texas Instruments. This product is designed to facilitate bidirectional voltage-level translation between different logic levels, making it ideal for mixed-voltage systems. It is part of the LVC family, known for its low-voltage operation and high-speed performance. The SN74LVC8T245MDWREP is particularly suited for applications requiring robust signal integrity and reliable data transfer. Its target user groups include engineers and designers working in industrial automation, consumer electronics, and automotive systems. The product's unique selling points include its wide voltage range, low power consumption, and enhanced ESD protection, making it a competitive choice in the market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Bits | 8 | - | Dual supply bidirectional transceiver |
| Supply Voltage (VCCA) | 1.65 to 5.5 | V | Side A voltage range |
| Supply Voltage (VCCB) | 1.65 to 5.5 | V | Side B voltage range |
| Logic Level Translation | Yes | - | Bidirectional voltage translation |
| Operating Temperature | -55 to 125 | °C | Extended temperature range |
| Package | SOIC-24 | - | Surface mount package |
| ESD Protection | ±2000 | V | HBM (Human Body Model) |
| Data Rate | Up to 100 | Mbps | High-speed operation |
| Power Consumption | Low | - | Optimized for low power |
Key Features
- Bidirectional Voltage Translation: Supports seamless translation between different voltage levels, enabling compatibility in mixed-voltage systems.
- Wide Voltage Range: Operates from 1.65V to 5.5V, making it versatile for various applications.
- High-Speed Operation: Capable of data rates up to 100 Mbps, ensuring efficient data transfer.
- Enhanced ESD Protection: Provides robust protection against electrostatic discharge, improving reliability.
- Low Power Consumption: Designed for energy efficiency, reducing overall system power requirements.
Applications
The SN74LVC8T245MDWREP is widely used in applications requiring voltage-level translation and robust signal integrity. Typical application fields include:
- Industrial Automation: Used in control systems and PLCs to interface between different voltage domains.
- Consumer Electronics: Facilitates communication between low-voltage processors and higher-voltage peripherals.
- Automotive Electronics: Enables reliable data transfer in vehicle communication networks and infotainment systems.
- Telecommunications: Supports mixed-voltage environments in networking and communication equipment.
Q & A
1. What is the primary function of the SN74LVC8T245MDWREP?
The SN74LVC8T245MDWREP is an 8-bit bidirectional bus transceiver designed for voltage-level translation between different logic levels.
2. What voltage ranges does it support?
It supports supply voltages from 1.65V to 5.5V on both sides (VCCA and VCCB).
3. Is it suitable for high-speed applications?
Yes, it supports data rates up to 100 Mbps, making it suitable for high-speed applications.
4. Does it have ESD protection?
Yes, it provides enhanced ESD protection up to ±2000V (HBM).
5. What is the operating temperature range?
It operates over an extended temperature range of -55°C to 125°C.
6. What package does it come in?
It is available in a SOIC-24 surface mount package.
7. Can it be used in automotive systems?
Yes, it is suitable for automotive electronics due to its robust design and reliability.
8. How does it handle power consumption?
It is optimized for low power consumption, making it energy-efficient.
9. Is it compatible with mixed-voltage systems?
Yes, it is specifically designed for bidirectional voltage translation in mixed-voltage systems.
10. Where can I find detailed technical specifications?
Detailed technical specifications can be found on the official Texas Instruments website or authorized distributors like Digi-Key and Mouser.
