Overview
The SN74LVC86ARGYRG4 is a quad 2-input exclusive-OR (XOR) gate manufactured by Texas Instruments. This logic gate is part of the 74LVC series, known for its low-voltage operation and high-speed performance. Designed for surface-mount technology (SMT), it is packaged in a QFN-14 form factor, making it suitable for compact and high-density PCB designs. The SN74LVC86ARGYRG4 is widely used in digital logic applications where XOR functionality is required, such as in arithmetic circuits, parity checkers, and data encryption systems. Its market positioning targets industries like consumer electronics, industrial automation, and telecommunications, where reliable and efficient logic gates are essential.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Function | Quad 2-Input XOR Gate | - | - |
| Logic Family | 74LVC | - | - |
| Number of Gates | 4 | - | - |
| Input Lines | 2 | - | - |
| Output Lines | 1 | - | - |
| High-Level Output Current | -24 | mA | - |
| Low-Level Output Current | 24 | mA | - |
| Propagation Delay | 5.4 | ns | @ 2.7 V |
| Supply Voltage (Max) | 3.6 | V | - |
| Supply Voltage (Min) | 1.65 | V | - |
| Operating Temperature (Max) | +85 | °C | - |
| Operating Temperature (Min) | -40 | °C | - |

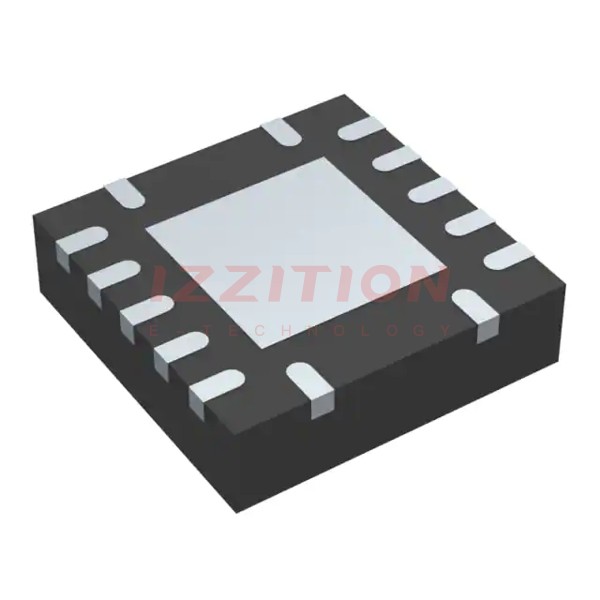

| Package | QFN-14 | - | 3.5 x 3.5 mm |
| Packaging | Reel | - | Factory Pack Quantity: 3000 |
Key Features
- Low-Voltage Operation: Supports supply voltages from 1.65 V to 3.6 V, making it ideal for battery-powered and low-power applications.
- High-Speed Performance: Features a propagation delay of 5.4 ns, ensuring rapid signal processing.
- Compact Design: Available in a QFN-14 package, suitable for space-constrained PCB layouts.
- Robust Output Drive: Capable of sourcing or sinking up to 24 mA, providing strong signal integrity.
- Wide Temperature Range: Operates reliably in environments ranging from -40°C to +85°C.
Applications
The SN74LVC86ARGYRG4 is versatile and finds applications in various fields. In consumer electronics, it is used in devices like smartphones and tablets for logic operations. In industrial automation, it plays a role in control systems and signal processing. Additionally, it is employed in telecommunications for data encryption and error detection. Its XOR functionality is also critical in arithmetic circuits and parity checkers, ensuring accurate computation and data integrity.
Q & A
1. What is the function of the SN74LVC86ARGYRG4?
The SN74LVC86ARGYRG4 is a quad 2-input exclusive-OR (XOR) gate, used for performing XOR logic operations.
2. What is the operating voltage range of this component?
It operates within a supply voltage range of 1.65 V to 3.6 V.
3. What is the propagation delay of the SN74LVC86ARGYRG4?
The propagation delay is 5.4 ns at 2.7 V.
4. What is the maximum output current of this device?
It can source or sink up to 24 mA.
5. What is the package type of the SN74LVC86ARGYRG4?
It is available in a QFN-14 package.
6. What is the operating temperature range?
It operates reliably from -40°C to +85°C.
7. Is this component RoHS compliant?
Yes, it is a lead-free (RoHS) component.
8. What are typical applications of this device?
It is used in arithmetic circuits, parity checkers, data encryption, and consumer electronics.
9. How many gates are included in the SN74LVC86ARGYRG4?
It contains four XOR gates.
10. What is the factory packaging quantity?
It is supplied in reels with a factory pack quantity of 3000 units.
