Overview

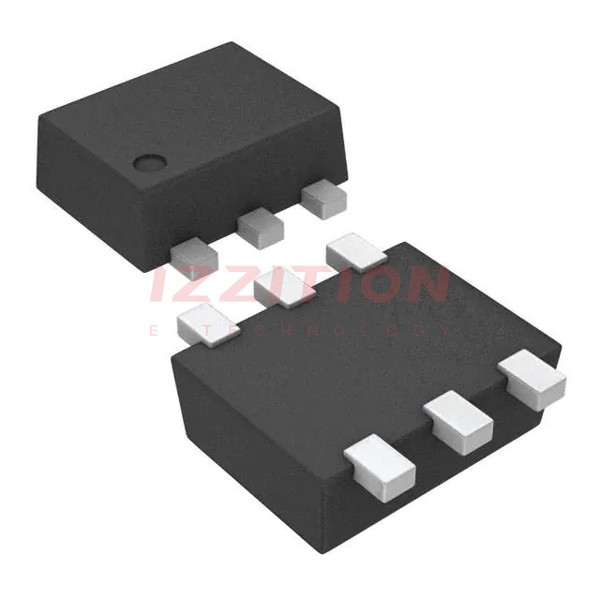

The SN74LVC2G04DRLRG4 is a dual inverter gate produced by Texas Instruments. This device is part of the SN74LVC2G04 family and is designed to operate over a wide voltage range of 1.65 V to 5.5 V. It features two identical inverters, each capable of performing the Boolean function Y = A. The device is known for its low power consumption, high output drive capability, and support for partial-power-down mode operation, making it suitable for a variety of applications in telecommunications, optical networking, and other fields.
Key Specifications
| Parameter | Min | Max | Unit |
|---|---|---|---|
| VCC (Supply Voltage) | -0.5 | 6.5 | V |
| VI (Input Voltage) | -0.5 | 6.5 | V |
| VO (Output Voltage in High or Low State) | -0.5 | VCC + 0.5 | V |
| IO (Continuous Output Current) | ±50 | mA | |
| ICC (Quiescent Current) | 10 | μA | |
| tpd (Propagation Delay at 3.3 V) | 4.1 | ns | |
| TA (Operating Free-Air Temperature) | -40 | 125 | °C |
| IOL (Low-Level Output Current at 3.3 V) | 24 | mA | |
| IOH (High-Level Output Current at 3.3 V) | -24 | mA |
Key Features
- Supports 5-V VCC operation and up to 5.5-V inputs.
- Low power consumption with a maximum quiescent current (ICC) of 10 μA.
- High output drive capability: ±24-mA at 3.3 V.
- Partial-power-down mode operation supported by Ioff circuitry.
- Overvoltage tolerant inputs.
- ESD protection exceeds JESD 22 standards (2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model).
- Latch-up performance exceeds 100 mA per JESD 78, Class II.
- Available in various packages including SOT-23, SC70, SOT, and DSBGA.
Applications
- Telecommunications: Telecom DC/DC modules, Private Branch Exchanges (PBX), Telecom Base Band Units, and Telecom Shelters.
- Optical Networking: Optical Modules, EPON, and Video Over Fiber.
- Point-to-Point Microwave Backhaul.
- IP Phones: Wired and Wireless.
- Power Systems: Power Distribution Units (PDU), Power Monitoring Units (PMU), and Wireless Battery Monitoring.
- TETRA Base Exchanges and Remote Radio Units (RRU).
Q & A
- What is the voltage range for the SN74LVC2G04DRLRG4? The device operates over a voltage range of 1.65 V to 5.5 V.
- What is the maximum propagation delay at 3.3 V? The maximum propagation delay at 3.3 V is 4.1 ns.
- What is the maximum output current at 3.3 V? The maximum output current at 3.3 V is ±24 mA.
- Does the SN74LVC2G04DRLRG4 support partial-power-down mode? Yes, it supports partial-power-down mode operation.
- What are the ESD protection levels for this device? The device has ESD protection exceeding JESD 22 standards (2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model).
- What are the typical operating temperatures for the SN74LVC2G04DRLRG4? The operating free-air temperature range is -40°C to 125°C.
- What packages are available for the SN74LVC2G04? The device is available in SOT-23, SC70, SOT, and DSBGA packages.
- What is the quiescent current (ICC) of the SN74LVC2G04DRLRG4? The maximum quiescent current (ICC) is 10 μA.
- Can the inputs of the SN74LVC2G04DRLRG4 handle voltages higher than VCC? Yes, the inputs are overvoltage tolerant and can handle voltages up to 6.5 V.
- What is the latch-up performance of the SN74LVC2G04DRLRG4? The latch-up performance exceeds 100 mA per JESD 78, Class II.
