Overview

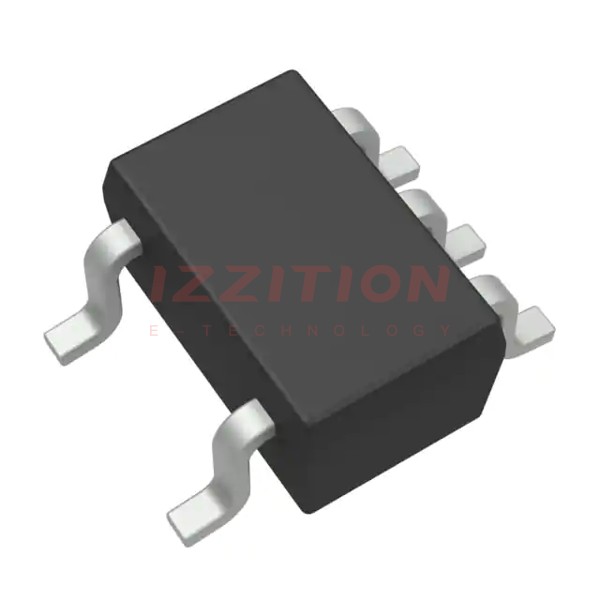

The SN74LVC1G86DCKRE4, produced by Texas Instruments, is a single 2-input exclusive-OR gate designed for operation within a voltage range of 1.65 V to 5.5 V. This device performs the Boolean function Y = AB + AB in positive logic. It is particularly useful in applications where low power consumption and high-speed operation are required. The device is available in the SC70 (SOT-353) package and is fully specified for partial-power-down applications, making it versatile for various electronic systems.
Key Specifications
Specification | Value |
---|---|
Package Type | SC70 (SOT-353) |
Number of Inputs | 2 |
Number of Terminals | 5 |
Operating Temperature Range | -40°C to 125°C |
Supply Voltage Range | 1.65 V to 5.5 V |
Propagation Delay (tpd) at 3.3 V and 15-pF load | 4 ns |
Output Drive at 3.3 V | ±24 mA |
Maximum ICC at 85°C | 10 µA |
ESD Protection | 2000-V Human-Body Model, 1000-V Charged-Device Model |
Technology | CMOS |
Key Features
- ESD Protection exceeds JESD 22 standards (2000-V Human-Body Model, 1000-V Charged-Device Model)
- Qualified for operation from -40°C to 125°C
- Supports 5-V VCC operation and inputs are over voltage tolerant up to 5.5 V
- Low power consumption with a maximum ICC of 10 µA at 85°C
- Maximum propagation delay of 4 ns at 3.3 V and 15-pF load
- ±24-mA output drive at 3.3 V
- Supports partial-power-down mode and back-drive protection through Ioff circuitry
- Available in Texas Instruments NanoFree™ package
- Latch-up performance exceeds 100 mA per JESD 78, Class II
Applications
- Wireless Headsets
- Motor Drives and Controls
- TVs
- Set-Top Boxes
- Audio Systems
Q & A
- What is the primary function of the SN74LVC1G86DCKRE4?
The SN74LVC1G86DCKRE4 performs the Boolean function Y = AB + AB in positive logic as a single 2-input exclusive-OR gate.
- What is the operating voltage range of the SN74LVC1G86DCKRE4?
The device operates within a voltage range of 1.65 V to 5.5 V.
- What is the maximum propagation delay of the SN74LVC1G86DCKRE4 at 3.3 V and 15-pF load?
The maximum propagation delay is 4 ns at 3.3 V and 15-pF load.
- Does the SN74LVC1G86DCKRE4 support partial-power-down mode?
Yes, the device supports partial-power-down mode using Ioff circuitry, which disables the outputs to prevent damaging current backflow.
- What is the output drive capability of the SN74LVC1G86DCKRE4 at 3.3 V?
The output drive capability is ±24 mA at 3.3 V.
- What type of ESD protection does the SN74LVC1G86DCKRE4 have?
The device has ESD protection exceeding JESD 22 standards (2000-V Human-Body Model, 1000-V Charged-Device Model).
- In what temperature range can the SN74LVC1G86DCKRE4 operate?
The device is qualified for operation from -40°C to 125°C.
- What is the maximum ICC at 85°C for the SN74LVC1G86DCKRE4?
The maximum ICC at 85°C is 10 µA.
- Is the SN74LVC1G86DCKRE4 available in a NanoFree™ package?
Yes, the device is available in the Texas Instruments NanoFree™ package.
- What are some common applications of the SN74LVC1G86DCKRE4?
Common applications include wireless headsets, motor drives and controls, TVs, set-top boxes, and audio systems.
