Overview

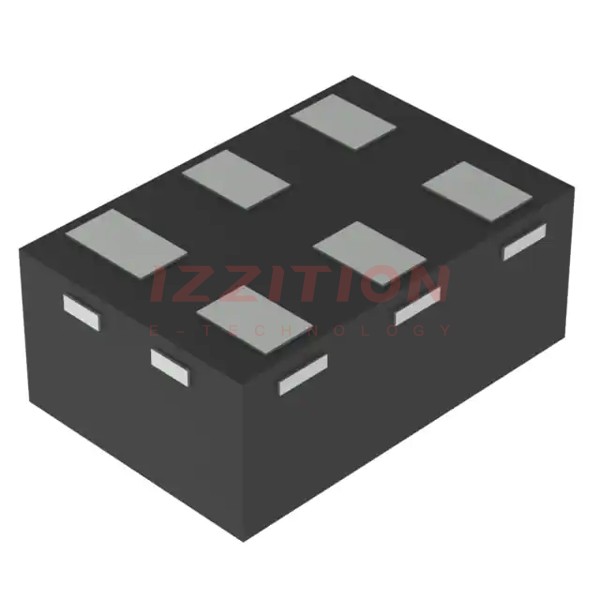

The SN74LVC1G32DRYR is a single 2-input positive OR gate produced by Texas Instruments. This logic gate is designed for operation within a voltage range of 1.65 V to 5.5 V, making it suitable for a variety of low-power applications. It is part of the LVC logic family, known for its high-speed performance and low power consumption. The device is available in a compact SON-6 package, ideal for space-constrained designs. Its primary market includes industrial automation, consumer electronics, and automotive electronics, where reliable logic operations are essential.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Function | OR Gate | - | Single 2-input |
| Logic Family | LVC | - | - |
| Number of Gates | 1 | - | - |
| Input Lines | 2 | - | - |
| Output Lines | 1 | - | - |
| High-Level Output Current | -32 | mA | - |
| Low-Level Output Current | 32 | mA | - |
| Propagation Delay Time | 4.5 | ns | - |
| Supply Voltage (Max) | 5.5 | V | - |
| Supply Voltage (Min) | 1.65 | V | - |
| Operating Temperature (Min) | -40 | °C | - |
| Operating Temperature (Max) | +125 | °C | - |
| Package | SON-6 | - | - |
| Height | 0.5 | mm | - |
| Length | 1.45 | mm | - |
| Width | 1 | mm | - |
| Input Type | CMOS, TTL | - | - |
| Operating Supply Voltage | 1.8, 2.5, 3.3, 5 | V | - |
| Factory Pack Quantity | 5000 | - | - |
| Unit Weight | 2.300 | mg | - |
Key Features
- High-speed performance with a propagation delay of 4.5 ns.
- Low power consumption, making it ideal for battery-operated devices.
- Wide operating voltage range from 1.65 V to 5.5 V.
- Compact SON-6 package for space-constrained designs.
- Compatible with both CMOS and TTL input levels.
- ESD protection exceeding JESD 22 standards.
Applications
The SN74LVC1G32DRYR is widely used in various industries due to its reliable performance and compact design. In industrial automation, it is utilized in control systems and signal processing. In consumer electronics, it is found in devices such as smartphones and tablets for logic operations. The automotive sector employs this component in vehicle control systems and infotainment systems, where low power consumption and high reliability are crucial.
Q & A
1. What is the function of the SN74LVC1G32DRYR?
The SN74LVC1G32DRYR is a single 2-input positive OR gate.
2. What is the operating voltage range of this device?
The operating voltage range is from 1.65 V to 5.5 V.
3. What is the propagation delay of the SN74LVC1G32DRYR?
The propagation delay is 4.5 ns.
4. What package does this device come in?
It comes in a SON-6 package.
5. Is the SN74LVC1G32DRYR compatible with TTL inputs?
Yes, it is compatible with both CMOS and TTL input levels.
6. What is the maximum operating temperature of this device?
The maximum operating temperature is +125°C.
7. What is the factory pack quantity of the SN74LVC1G32DRYR?
The factory pack quantity is 5000 units.
8. What is the height of the SON-6 package?
The height is 0.5 mm.
9. What are the typical applications of this device?
Typical applications include industrial automation, consumer electronics, and automotive electronics.
10. Does the SN74LVC1G32DRYR have ESD protection?
Yes, it has ESD protection exceeding JESD 22 standards.
