Overview
The SN74LVC1G32DRLRG4 is a single 2-input OR gate produced by Texas Instruments. It belongs to the category of logic gates, specifically designed for low-voltage applications. This product is positioned as a compact and efficient solution for digital logic operations, targeting designers and engineers in industries such as consumer electronics, industrial automation, and automotive electronics. Its unique selling points include its small package size, low power consumption, and compatibility with a wide range of voltage levels, making it a competitive choice for space-constrained and power-sensitive applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | 1.65 to 5.5 | V | |
| Input Voltage Range | 0 to 5.5 | V | |
| Output Voltage Range | 0 to VCC | V | |
| Propagation Delay | 3.7 | ns | at 3.3V |
| Operating Temperature Range | -40 to 125 | °C | |

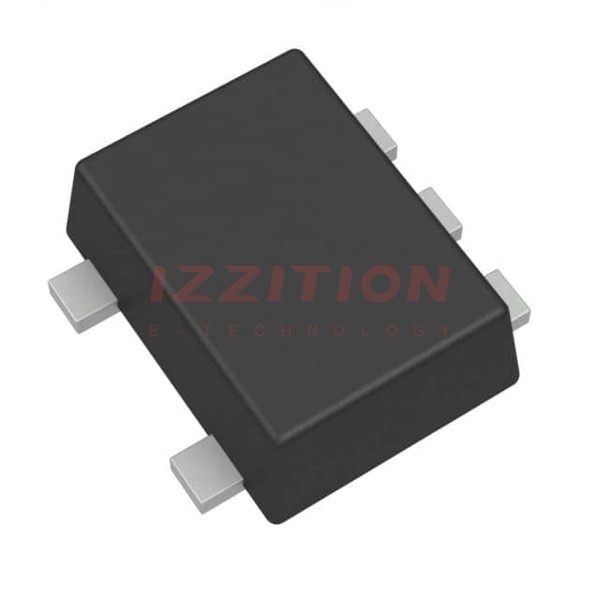

| Package Type | SOT-553 | ||
| Number of Channels | 1 | ||
| Logic Type | OR Gate | ||
| Low Power Consumption | Yes | ||
| RoHS Compliant | Yes |
Key Features
- Low Power Consumption: Ideal for battery-powered and energy-efficient applications.
- Wide Voltage Range: Operates from 1.65V to 5.5V, ensuring compatibility with various systems.
- Compact Package: SOT-553 package minimizes board space, suitable for portable devices.
- High-Speed Operation: Propagation delay of 3.7ns at 3.3V enables fast signal processing.
- Robust Design: Supports mixed-voltage operation and features ESD protection.
Applications
The SN74LVC1G32DRLRG4 is widely used in various applications, including:
- Consumer Electronics: Used in smartphones, tablets, and wearables for logic operations.
- Industrial Automation: Integrated into control systems and sensors for signal processing.
- Automotive Electronics: Employed in vehicle control modules and infotainment systems.
- IoT Devices: Suitable for compact and low-power IoT applications.
Q & A
1. What is the operating voltage range of the SN74LVC1G32DRLRG4?
The operating voltage range is 1.65V to 5.5V.
2. What is the propagation delay of this device?
The propagation delay is 3.7ns at 3.3V.
3. Is this device RoHS compliant?
Yes, it is RoHS compliant.
4. What is the package type of the SN74LVC1G32DRLRG4?
It comes in an SOT-553 package.
5. Can this device be used in automotive applications?
Yes, it is suitable for automotive electronics.
6. Does it support mixed-voltage operation?
Yes, it supports mixed-voltage operation.
7. What is the logic type of this device?
It is a single 2-input OR gate.
8. Is this device suitable for low-power applications?
Yes, it is designed for low power consumption.
9. What is the operating temperature range?
The operating temperature range is -40°C to 125°C.
10. Can it be used in IoT devices?
Yes, its compact size and low power consumption make it ideal for IoT applications.
