Overview

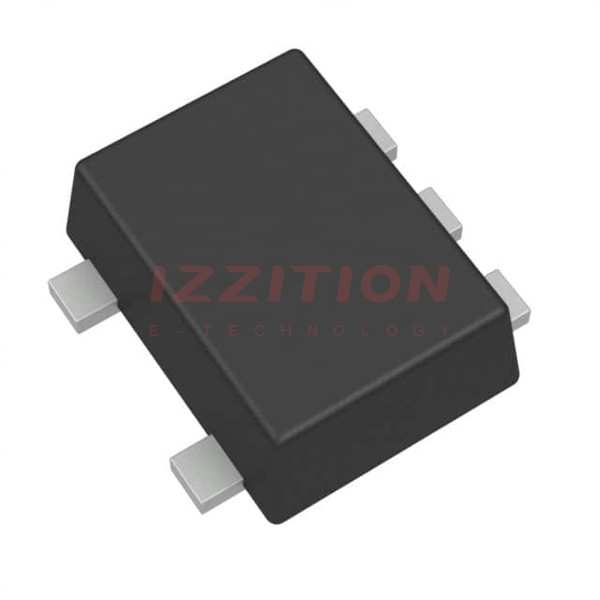

The SN74LVC1G14DRLRG4, produced by Texas Instruments, is a single Schmitt-trigger inverter integrated circuit. This device operates within a voltage range of 1.65 V to 5.5 V and performs the Boolean function Y = A. It is designed to be highly tolerant of slow or noisy input signals due to its Schmitt-trigger inputs, which provide hysteresis. The SN74LVC1G14 is fully specified for partial-power-down applications, featuring Ioff circuitry that disables the outputs when the device is powered down, preventing current backflow and potential damage.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| VCC Supply Voltage | 1.65 | 5.5 | V | |
| Input Voltage (VI) | 0 | 5.5 | V | |
| Output Voltage (VO) | 0 | VCC | V | |
| High-Level Output Current (IOH) at VCC = 3.3 V | -24 | mA | ||
| Low-Level Output Current (IOL) at VCC = 3.3 V | 24 | mA | ||
| Propagation Delay Time (tpd) at VCC = 3.3 V, CL = 15 pF | 2.8 | 9.9 | ns | |
| Operating Free-Air Temperature | -40 | 85 | °C | |
| ESD Protection | 2000 V (Human-Body Model), 200 V (Machine Model), 1000 V (Charged-Device Model) | V |
Key Features
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22: 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model
- Available in the Texas Instruments NanoFree™ Package
- Supports 1.65 V to 5.5 V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Low Power Consumption: 10-µA Max ICC
- ±24-mA Output Drive at 3.3 V
- Schmitt-Trigger Inputs for Hysteresis and Noise Tolerance
- Ioff Circuitry for Partial-Power-Down Applications
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theater Systems
- Embedded PCs
- MP3 Players/Recorders (Portable Audio)
- Personal Digital Assistants (PDAs)
- Telecom/Server AC/DC Power Supplies: Single Controllers
- Solid State Drives (SSDs): Client and Enterprise
- TVs: LCD/Digital and High-Definition (HDTV)
- Tablets: Enterprise
- Video Analytics: Server
- Wireless Headsets, Keyboards, and Mice
Q & A
- What is the voltage range for the SN74LVC1G14DRLRG4?
The SN74LVC1G14DRLRG4 operates within a voltage range of 1.65 V to 5.5 V.
- What type of inputs does the SN74LVC1G14DRLRG4 have?
The device has Schmitt-trigger inputs, which provide hysteresis and make it tolerant to slow or noisy input signals.
- What is the maximum propagation delay time for the SN74LVC1G14DRLRG4 at 3.3 V and CL = 15 pF?
The maximum propagation delay time is 9.9 ns.
- What is the ESD protection level for the SN74LVC1G14DRLRG4?
The device exceeds JESD 22 ESD protection standards: 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model.
- What is the purpose of the Ioff circuitry in the SN74LVC1G14DRLRG4?
The Ioff circuitry disables the outputs when the device is powered down, preventing current backflow and potential damage.
- In what packages is the SN74LVC1G14 available?
The device is available in various packages including SOT-23, SC70, SOT-5X3, SON, DSBGA, and X2SON.
- What are some common applications for the SN74LVC1G14DRLRG4?
Common applications include AV receivers, audio docks, Blu-ray players, embedded PCs, and various other consumer and industrial electronics.
- What is the operating free-air temperature range for the SN74LVC1G14DRLRG4?
The operating free-air temperature range is –40°C to 85°C.
- How much current can the SN74LVC1G14DRLRG4 drive at 3.3 V?
The device can drive ±24 mA at 3.3 V.
- What is the maximum low power consumption of the SN74LVC1G14DRLRG4?
The maximum low power consumption is 10 µA.
