Overview

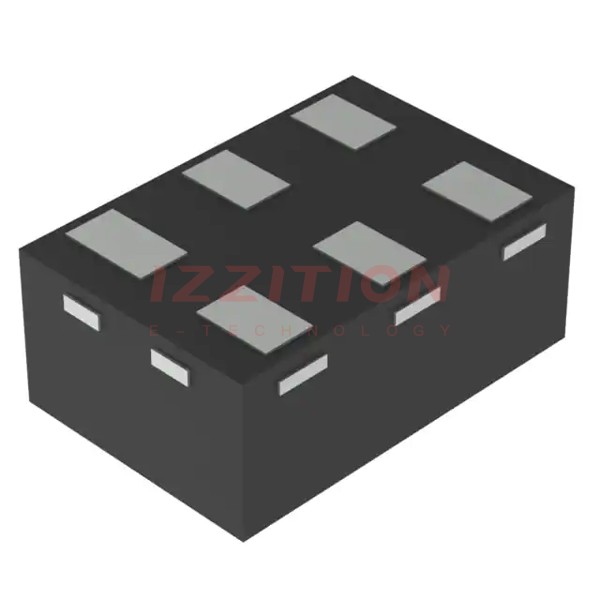

The SN74LVC1G04DRYRG4 is a single inverter gate produced by Texas Instruments. This device is part of the LVC (Low-Voltage CMOS) family and is designed for operation over a wide voltage range from 1.65 V to 5.5 V. It is particularly useful for applications requiring high output drive and low power consumption. The SN74LVC1G04 performs the Boolean function Y = A, where Y is the inverted output of input A. This device is available in various ultra-small packages, including the SON (Small Outline No-lead) package, which is ideal for space-constrained designs.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| VCC Supply Voltage Range | 1.65 | - | 5.5 | V |
| VI Input Voltage Range | -0.5 | - | 6.5 | V |
| VO Output Voltage Range | -0.5 | - | VCC + 0.5 | V |
| IOH High-Level Output Current | -100 μA | -4 mA | -32 mA | mA |
| IOL Low-Level Output Current | 100 μA | 4 mA | 32 mA | mA |
| tpd Propagation Delay (A to Y) | 1 | 3.3 ns | 7.5 ns | ns |
| ICC Quiescent Current | - | - | 10 μA | μA |
| TA Operating Free-Air Temperature | -40 | - | 125 | °C |
Key Features
- Wide operating voltage range: 1.65 V to 5.5 V
- Supports 5-V VCC operation
- Inputs accept voltages up to 5.5 V, allowing down voltage translation to VCC
- High output drive: ±24 mA at 3.3 V
- Low power consumption: 10-μA max ICC
- Ioff feature supports live insertion, partial power-down mode, and back-drive protection
- Latch-up performance exceeds 100 mA per JESD 78, Class II
- ESD protection exceeds JESD 22: 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model
Applications
- Implementing inversion logic in high-speed applications up to 100 MHz
- Driving multiple outputs, such as LEDs
- Used in handheld devices like smartphones
- Suitable for designs requiring high output drive and low power consumption
Q & A
- What is the operating voltage range of the SN74LVC1G04?
The SN74LVC1G04 operates over a voltage range from 1.65 V to 5.5 V.
- What is the maximum propagation delay of the SN74LVC1G04 at 3.3 V VCC?
The maximum propagation delay at 3.3 V VCC is 3.3 ns.
- How much output current can the SN74LVC1G04 drive at 3.3 V?
The device can drive up to ±24 mA at 3.3 V.
- What is the quiescent current (ICC) of the SN74LVC1G04?
The quiescent current is 10 μA maximum.
- What are the temperature limits for the SN74LVC1G04?
The operating free-air temperature range is from -40°C to 125°C.
- Does the SN74LVC1G04 support partial power-down mode?
- What kind of ESD protection does the SN74LVC1G04 have?
The device has ESD protection exceeding JESD 22: 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model.
- What are the common applications of the SN74LVC1G04?
Common applications include implementing inversion logic in high-speed applications, driving multiple outputs like LEDs, and use in handheld devices.
- What package options are available for the SN74LVC1G04?
The device is available in various packages including SOT-23, SC70, and SON.
- How does the SN74LVC1G04 handle input voltages above VCC?
The inputs accept voltages up to 5.5 V, allowing down voltage translation to VCC.
