Overview

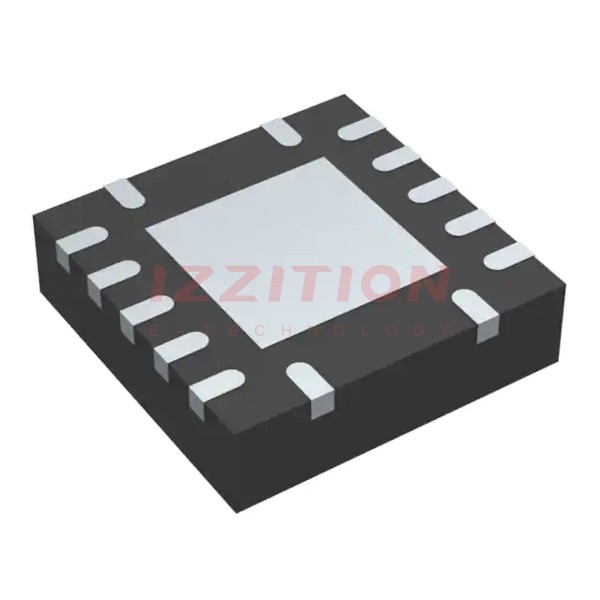

The SN74LVC07ARGYRG4 is a hex buffer/driver with open-drain outputs, manufactured by Texas Instruments. This product belongs to the logic gate category and is designed for applications requiring high-speed signal buffering and driving capabilities. The SN74LVC07ARGYRG4 is particularly suited for use in systems where low power consumption and high noise immunity are critical. Its open-drain outputs allow for flexible interfacing with other logic levels and external components, making it a versatile choice for a wide range of electronic designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 1.65 to 5.5 | V | |
| Output Type | Open Drain | ||
| Number of Channels | 6 | ||
| Propagation Delay Time | 4.3 | ns | @ 3.3V |
| Operating Temperature Range | -40 to 85 | °C | |
| Package / Case | VQFN-14 | ||
| Mounting Type | Surface Mount | ||
| Logic Type | Buffer/Driver | ||
| High Level Output Current | -32 | mA | |
| Low Level Output Current | 32 | mA |
Key Features
- Wide operating voltage range from 1.65V to 5.5V, suitable for interfacing with both 3.3V and 5V logic levels.
- Open-drain outputs allow for flexible interfacing with other logic levels and external components.
- High noise immunity ensures reliable operation in noisy environments.
- Low power consumption, making it ideal for battery-powered applications.
- Fast propagation delay time of 4.3 ns at 3.3V, enabling high-speed signal processing.
Applications
The SN74LVC07ARGYRG4 is widely used in various applications, including:
- Industrial Automation: For signal buffering and driving in control systems and sensors.
- Consumer Electronics: In devices such as smartphones, tablets, and digital cameras for level shifting and signal conditioning.
- Automotive Electronics: In vehicle control systems and infotainment systems for reliable signal transmission.
- Communication Systems: For interfacing and signal conditioning in networking equipment and data communication devices.
Q & A
1. What is the operating voltage range of the SN74LVC07ARGYRG4?
The operating voltage range is from 1.65V to 5.5V.
2. What type of outputs does the SN74LVC07ARGYRG4 have?
It has open-drain outputs.
3. How many channels does the SN74LVC07ARGYRG4 have?
It has 6 channels.
4. What is the propagation delay time of the SN74LVC07ARGYRG4?
The propagation delay time is 4.3 ns at 3.3V.
5. What is the operating temperature range of the SN74LVC07ARGYRG4?
The operating temperature range is from -40°C to 85°C.
6. What package does the SN74LVC07ARGYRG4 come in?
It comes in a VQFN-14 package.
7. What is the mounting type for the SN74LVC07ARGYRG4?
It is designed for surface mounting.
8. What is the logic type of the SN74LVC07ARGYRG4?
It is a buffer/driver.
9. What is the high-level output current of the SN74LVC07ARGYRG4?
The high-level output current is -32 mA.
10. What is the low-level output current of the SN74LVC07ARGYRG4?
The low-level output current is 32 mA.
