Overview

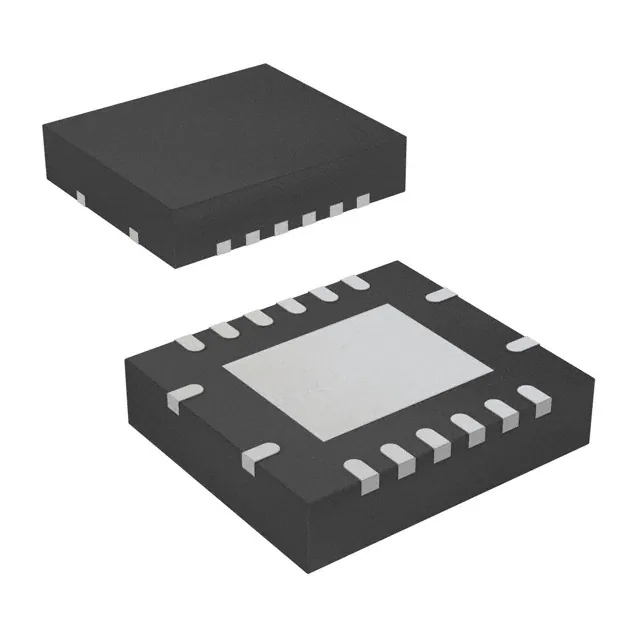

The SN74LV595ARGYR is an 8-bit shift register produced by Texas Instruments. This component is designed for applications requiring serial-to-parallel or serial-to-serial data conversion, making it a versatile choice for various digital systems. It operates within a voltage range of 2V to 5.5V and is available in a compact VQFN-16 package. The device is particularly suited for industrial, automotive, and consumer electronics due to its robust performance and wide operating temperature range (-40°C to +125°C). Its market positioning targets designers and engineers seeking reliable and efficient shift register solutions for their projects.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Logic Type | Shift Register | - | 8-bit |
| Output Type | 3-State | - | - |
| Supply Voltage | 2 to 5.5 | V | - |
| Operating Temperature | -40 to +125 | °C | - |
| Propagation Delay | 10.2, 16.5, 22.5 | ns | Typical values |
| Package | VQFN-16 | - | 4x3.5 mm |
| Mounting Style | SMD/SMT | - | - |
| Humidity Sensitivity | Yes | - | - |
| Factory Pack Quantity | 3000 | - | Reel |
Key Features
- 8-Bit Shift Register: Enables serial-to-parallel or serial-to-serial data conversion.
- Wide Voltage Range: Operates from 2V to 5.5V, suitable for various applications.
- 3-State Outputs: Provides high impedance state for bus-oriented applications.
- Compact Package: VQFN-16 package saves board space.
- Robust Performance: Operates reliably in extreme temperatures (-40°C to +125°C).
Applications
The SN74LV595ARGYR is widely used in digital systems for data storage and transfer. Typical applications include:
- Industrial Automation: For control and monitoring systems.
- Automotive Electronics: In dashboard displays and sensor interfaces.
- Consumer Electronics: Such as LED displays and smart home devices.
- Communication Systems: For data buffering and signal processing.
Q & A
1. What is the operating voltage range of SN74LV595ARGYR?
The device operates within a voltage range of 2V to 5.5V.
2. What is the package type of SN74LV595ARGYR?
It is available in a VQFN-16 package.
3. What is the maximum operating temperature?
The maximum operating temperature is +125°C.
4. Does SN74LV595ARGYR support 3-state outputs?
Yes, it features 3-state outputs for bus-oriented applications.
5. What is the propagation delay of this device?
The typical propagation delay values are 10.2 ns, 16.5 ns, and 22.5 ns.
6. Is SN74LV595ARGYR RoHS compliant?
Yes, the device is RoHS compliant.
7. What is the factory pack quantity?
The factory pack quantity is 3000 units per reel.
8. What are the typical applications of this shift register?
It is used in industrial automation, automotive electronics, consumer electronics, and communication systems.
9. Does the device have humidity sensitivity?
Yes, it is humidity sensitive.
10. What is the logic type of SN74LV595ARGYR?
It is an 8-bit shift register.
