Overview

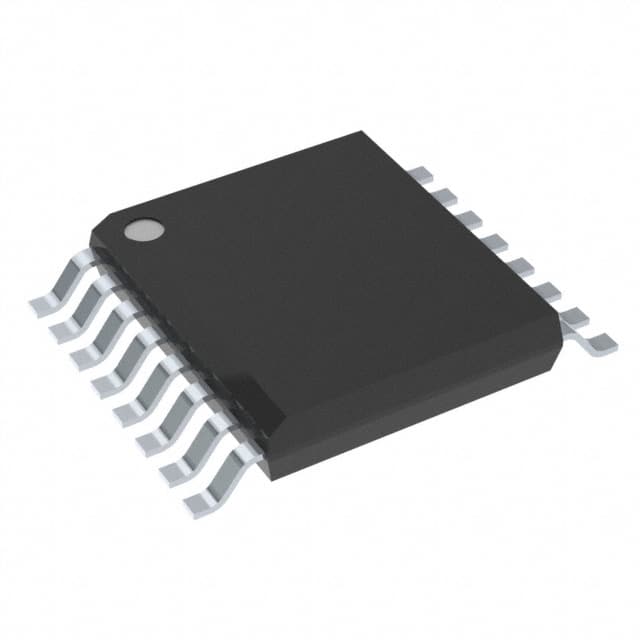

The SN74LV595ADBR is an 8-bit shift register with output latches produced by Texas Instruments. This component is designed for serial-to-parallel data conversion, making it a versatile choice for applications requiring data expansion or LED control. It is particularly suitable for use in industrial automation, consumer electronics, and automotive systems due to its high-speed operation and low power consumption. The SN74LV595ADBR stands out for its ability to cascade multiple devices, enabling the control of a large number of outputs with minimal microcontroller pins.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Logic Type | Shift Register | - | 8-bit serial-in, parallel-out |
| Output Type | 3-State | - | High-impedance when disabled |
| Supply Voltage | 2V to 5.5V | V | Wide operating range |
| Operating Temperature | -40°C to 85°C | °C | Suitable for industrial environments |
| Package | SSOP-16 | - | Compact surface-mount package |
| Shift Frequency | Up to 100 MHz | Hz | High-speed data transfer |
| Current Output | ±8 mA | mA | Capable of driving LEDs directly |
Key Features
- 8-Bit Serial-In, Parallel-Out Shift Register: Enables efficient data expansion with minimal input pins.
- 3-State Outputs: Allows for high-impedance state, facilitating bus sharing in multi-device systems.
- Cascadable Design: Supports daisy-chaining for controlling multiple devices with a single microcontroller.
- Low Power Consumption: Ideal for battery-operated and energy-efficient applications.
- Wide Operating Voltage: Compatible with both 3.3V and 5V systems.
Applications
The SN74LV595ADBR is widely used in various fields, including:
- Industrial Automation: For controlling actuators, sensors, and displays in automated systems.
- Consumer Electronics: In LED displays, smart home devices, and audio equipment.
- Automotive Systems: For dashboard displays, lighting control, and infotainment systems.
- Embedded Systems: As an IO expander for microcontrollers with limited pins.
Q & A
1. What is the primary function of the SN74LV595ADBR?
The SN74LV595ADBR is an 8-bit shift register that converts serial input data into parallel output data, enabling efficient data expansion.
2. Can the SN74LV595ADBR be used in 3.3V systems?
Yes, it supports a wide operating voltage range of 2V to 5.5V, making it compatible with both 3.3V and 5V systems.
3. How does the cascading feature work?
Multiple SN74LV595ADBR devices can be daisy-chained by connecting the serial output of one device to the serial input of the next, allowing control of numerous outputs with minimal pins.
4. What is the maximum shift frequency?
The device supports a shift frequency of up to 100 MHz, enabling high-speed data transfer.
5. What are the 3-state outputs used for?
3-state outputs allow the device to enter a high-impedance state, which is useful for bus sharing in multi-device systems.
6. Is the SN74LV595ADBR suitable for driving LEDs?
Yes, it can source or sink up to 8 mA per output, making it capable of driving LEDs directly.
7. What is the operating temperature range?
The device operates reliably within a temperature range of -40°C to 85°C, suitable for industrial environments.
8. What package does the SN74LV595ADBR come in?
It is available in an SSOP-16 package, which is compact and suitable for surface-mount applications.
9. Can the SN74LV595ADBR be used in automotive applications?
Yes, it is suitable for automotive systems such as dashboard displays and lighting control.
10. How does the device handle power consumption?
The SN74LV595ADBR is designed for low power consumption, making it ideal for battery-operated and energy-efficient applications.
