Overview

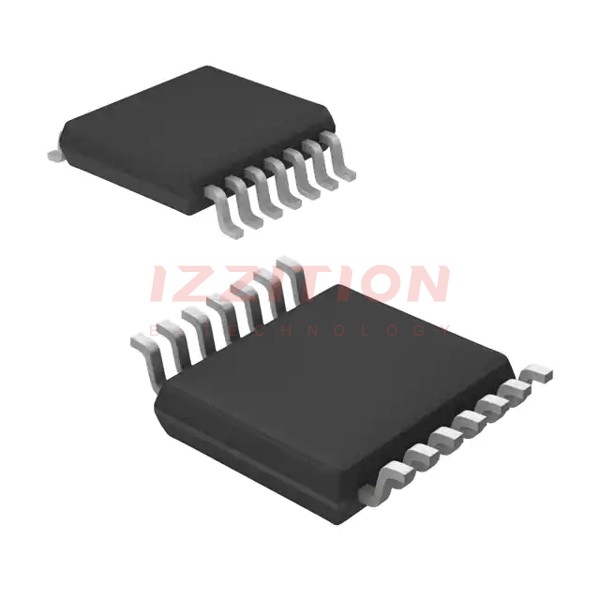

The SN74LV4051APWR-M, manufactured by Texas Instruments, is an 8-channel analog multiplexer/demultiplexer integrated circuit. This component is designed for applications requiring signal routing and switching in low-voltage environments. It is particularly suitable for use in consumer electronics, industrial automation, and automotive systems due to its compact size, low power consumption, and robust performance. The SN74LV4051APWR-M is part of the 74LV series, known for its reliability and versatility in signal processing tasks.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Circuit Count | 1 | ||
| Multiplexer/Demultiplexer Configuration | 8:1 | ||
| Leakage Current | 100 | nA | |
| Supply Voltage | 2 to 5.5 | V | |
| Pin Count | 16 | ||
| Height | 1.20 | mm | |
| Dimensions | 5.00 x 4.40 | mm | |
| Channel Capacitance (CS(off), CD(off)) | 0.5, 23.4 | pF | |
| Switch Time (Ton, Toff) | 14, 14 | ns | Maximum |
| Channel Count | 8 | ||
| Lead-Free | Yes | ||
| Operating Temperature | -40 to +85 | °C | |
| Package/Case | TSSOP-16 |
Key Features
- 8-channel analog multiplexer/demultiplexer for signal routing.
- Low leakage current of 100nA ensures minimal power loss.
- Wide supply voltage range from 2V to 5.5V, suitable for low-voltage applications.
- Compact TSSOP-16 package saves board space.
- Fast switching times of 14ns for efficient signal processing.
- Operates reliably across a wide temperature range from -40°C to +85°C.
Applications
The SN74LV4051APWR-M is widely used in various industries due to its versatile functionality. In consumer electronics, it is employed in audio and video signal routing. In industrial automation, it facilitates sensor signal multiplexing. Automotive systems utilize this component for switching and routing signals in control modules. Its robust design and low power consumption make it ideal for applications requiring reliable performance in harsh environments.
Q & A
What is the supply voltage range for the SN74LV4051APWR-M?
The supply voltage range is from 2V to 5.5V.
How many channels does the SN74LV4051APWR-M have?
It has 8 channels.
What is the maximum switch time for this component?
The maximum switch time is 14ns.
Is the SN74LV4051APWR-M lead-free?
Yes, it is lead-free.
What is the operating temperature range?
The operating temperature range is from -40°C to +85°C.
What package does the SN74LV4051APWR-M come in?
It comes in a TSSOP-16 package.
What is the leakage current of the SN74LV4051APWR-M?
The leakage current is 100nA.
What is the channel capacitance of this component?
The channel capacitance is 0.5pF (CS(off)) and 23.4pF (CD(off)).
Can the SN74LV4051APWR-M be used in automotive applications?
Yes, it is suitable for automotive applications.
What is the height of the SN74LV4051APWR-M?
The height is 1.20mm.
