Overview

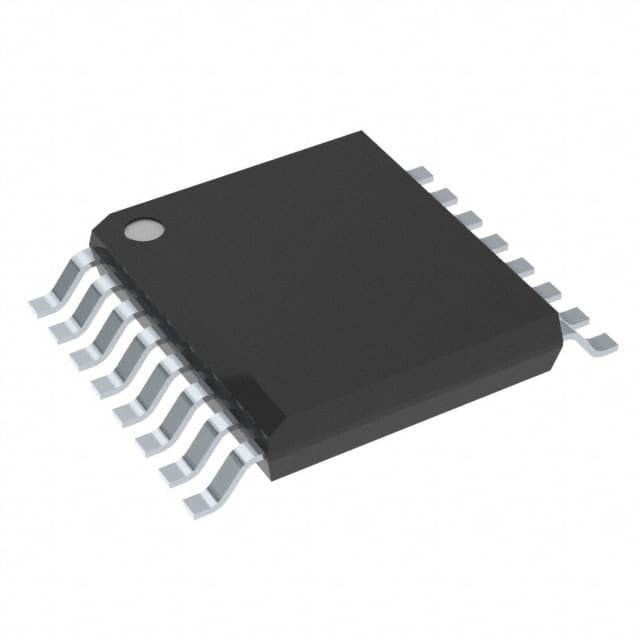

The SN74LV165ADBR is a high-performance 8-bit parallel-load shift register manufactured by Texas Instruments. Designed for applications requiring serial-to-parallel data conversion, this component is part of the 74LV logic family and operates within a voltage range of 2V to 5.5V. Its compact SSOP-16 package and CMOS technology make it suitable for space-constrained and power-sensitive designs. The SN74LV165ADBR is widely used in industrial automation, consumer electronics, and automotive systems due to its reliability and versatility.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Function | Parallel-Load 8-Bit Shift Register | - | - |
| Logic Family | 74LV | - | - |
| Logic Type | CMOS | - | - |
| Number of Bits | 8 | bit | - |
| Input Lines | 2 / 2 | - | - |
| Output Lines | 2 | - | - |
| Propagation Delay | 23.3 ns, 14.9 ns, 11.9 ns | ns | - |
| Supply Voltage | 2V to 5.5V | V | - |
| Operating Temperature | -40°C to +125°C | °C | - |
| Package | SSOP-16 | - | - |
| Factory Pack Quantity | 2000 | - | - |
Key Features
- Supports parallel-to-serial and serial-to-serial data conversion.
- Wide operating voltage range (2V to 5.5V) for versatile applications.
- Compact SSOP-16 package ideal for space-constrained designs.
- CMOS technology ensures low power consumption.
- Robust performance across a wide temperature range (-40°C to +125°C).
Applications
The SN74LV165ADBR is widely used in various industries due to its reliability and flexibility. In industrial automation, it is employed for data acquisition and control systems. In consumer electronics, it facilitates signal processing and interface management. In automotive electronics, it supports communication and control modules. Its ability to handle both parallel and serial data makes it a versatile choice for modern electronic designs.
Q & A
1. What is the operating voltage range of the SN74LV165ADBR?
The operating voltage range is 2V to 5.5V.
2. What is the maximum propagation delay?
The maximum propagation delay is 23.3 ns.
3. What package does the SN74LV165ADBR use?
It uses an SSOP-16 package.
4. What is the operating temperature range?
The operating temperature range is -40°C to +125°C.
5. How many bits does the SN74LV165ADBR support?
It supports 8 bits.
6. Is the SN74LV165ADBR RoHS compliant?
Yes, it is RoHS compliant.
7. What is the factory pack quantity?
The factory pack quantity is 2000 units.
8. What logic family does this component belong to?
It belongs to the 74LV logic family.
9. What are the typical applications of the SN74LV165ADBR?
Typical applications include industrial automation, consumer electronics, and automotive systems.
10. Does the SN74LV165ADBR support parallel data loading?
Yes, it supports parallel data loading.
