Overview

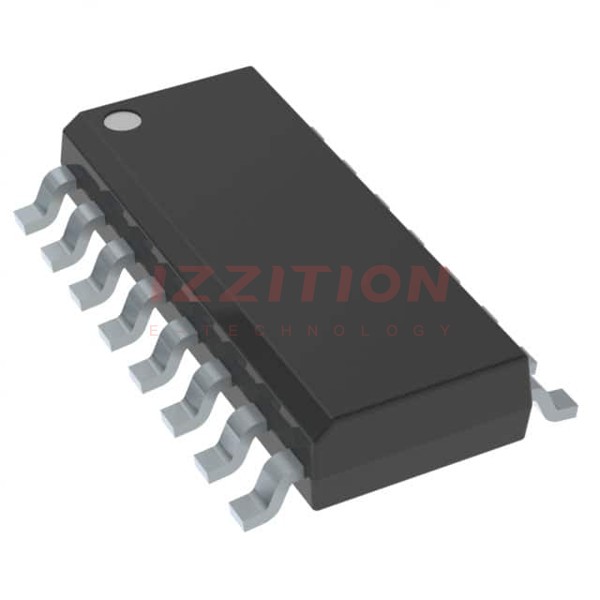

The SN74LV138ANSR is a 3-to-8 line decoder/demultiplexer produced by Texas Instruments. This integrated circuit is designed to decode three binary address inputs into one of eight mutually exclusive outputs. It is part of the LV (Low-Voltage) family, which operates at a lower voltage range, making it suitable for modern low-power applications. The SN74LV138ANSR is widely used in digital systems for address decoding, data routing, and signal demultiplexing. Its compact package and robust performance make it a popular choice among engineers and designers in various industries.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | 2 V to 5.5 V | V | Wide operating range |
| Number of Inputs | 3 | Binary address inputs | |
| Number of Outputs | 8 | Mutually exclusive outputs | |
| Propagation Delay | 9.5 ns | ns | Typical at 5 V |
| Operating Temperature | -40°C to 85°C | °C | Industrial range |
| Package | SOIC-16 | Surface mount | |
| Logic Family | LV | Low-Voltage |
Key Features
- Low Power Consumption: Ideal for battery-operated devices and energy-efficient systems.
- Wide Operating Voltage Range: Supports 2 V to 5.5 V, ensuring compatibility with various logic levels.
- High-Speed Operation: Propagation delay of 9.5 ns at 5 V enables quick signal processing.
- Compact Package: SOIC-16 package saves board space and simplifies PCB design.
- Industrial Temperature Range: Operates reliably in harsh environments.
Applications
The SN74LV138ANSR is widely used in digital systems for address decoding, data routing, and signal demultiplexing. Its applications span across various fields, including:
- Industrial Automation: Used in control systems for signal routing and device selection.
- Consumer Electronics: Integrated into devices like smart home systems and entertainment equipment.
- Automotive Electronics: Employed in vehicle control units for efficient signal management.
- Telecommunications: Utilized in communication devices for data routing and decoding.
- Embedded Systems: Essential for microcontroller-based projects requiring address decoding.
Q & A
1. What is the operating voltage range of the SN74LV138ANSR?
The SN74LV138ANSR operates within a voltage range of 2 V to 5.5 V.
2. How many outputs does the SN74LV138ANSR have?
It has eight mutually exclusive outputs.
3. What is the typical propagation delay of this decoder?
The typical propagation delay is 9.5 ns at 5 V.
4. Is the SN74LV138ANSR suitable for industrial applications?
Yes, it operates within an industrial temperature range of -40°C to 85°C.
5. What package does the SN74LV138ANSR come in?
It is available in an SOIC-16 package.
6. Can this decoder be used in automotive electronics?
Yes, it is suitable for automotive applications due to its robust performance.
7. What is the logic family of the SN74LV138ANSR?
It belongs to the LV (Low-Voltage) logic family.
8. Does the SN74LV138ANSR support low-power applications?
Yes, its low power consumption makes it ideal for battery-operated devices.
9. What are the primary functions of the SN74LV138ANSR?
It is used for address decoding, data routing, and signal demultiplexing.
10. Where can I find detailed specifications for the SN74LV138ANSR?
Detailed specifications are available in the official Texas Instruments datasheet and on distributor websites like Digi-Key and Mouser.
