Overview

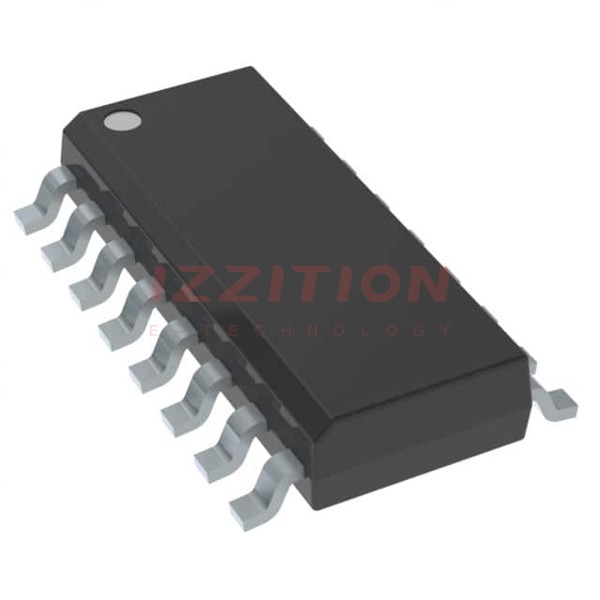

The SN74LS151NSR is a high-performance 8-input multiplexer produced by Texas Instruments. This component is part of the 74LS series, known for its low-power Schottky technology, making it ideal for digital logic applications. The SN74LS151NSR is designed to select one of eight data inputs based on the select lines and provide the selected input at the output. It is widely used in data routing, signal selection, and digital systems where efficient data handling is required. Its compact design, reliability, and low power consumption make it a popular choice for engineers and designers in various industries.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Logic Type | Multiplexer | - | 8-input, 1-output |
| Technology | LS (Low Power Schottky) | - | - |
| Supply Voltage | 4.75 to 5.25 | V | Nominal 5V |
| Operating Temperature | 0 to 70 | °C | Commercial grade |
| Propagation Delay | 15 | ns | Typical value |
| Power Consumption | 32 | mW | Typical value |
| Package | SOIC-16 | - | Surface mount |
| Input Capacitance | 3 | pF | Typical value |
| Output Current | 8 | mA | High-level output |
| Mounting Type | Surface Mount | - | - |
Key Features
- 8-input multiplexer with a single output for efficient data selection.
- Low power consumption due to LS technology, ideal for battery-powered devices.
- High-speed operation with a typical propagation delay of 15 ns.
- Wide operating voltage range (4.75V to 5.25V) ensures compatibility with standard TTL logic levels.
- Compact SOIC-16 package for space-saving designs.
- Strobe input for enabling or disabling the multiplexer functionality.
Applications
The SN74LS151NSR is widely used in various digital systems and applications, including:
- Data routing in microprocessors and digital circuits.
- Signal selection in communication systems.
- Arithmetic logic units (ALUs) for data manipulation.
- Industrial automation for control signal management.
- Consumer electronics such as TVs, audio systems, and gaming consoles.
Q & A
1. What is the function of the SN74LS151NSR?
The SN74LS151NSR is an 8-input multiplexer that selects one of eight data inputs based on the select lines and provides the selected input at the output.
2. What is the operating voltage range of this component?
The operating voltage range is 4.75V to 5.25V, with a nominal value of 5V.
3. What is the typical propagation delay of the SN74LS151NSR?
The typical propagation delay is 15 ns.
4. What package does the SN74LS151NSR come in?
It comes in an SOIC-16 surface-mount package.
5. Is the SN74LS151NSR suitable for low-power applications?
Yes, it uses low-power Schottky (LS) technology, making it suitable for low-power applications.
6. What is the maximum output current of this component?
The maximum high-level output current is 8 mA.
7. Can the SN74LS151NSR be used in industrial environments?
Yes, it is suitable for industrial automation and control systems.
8. Does the SN74LS151NSR have a strobe input?
Yes, it includes a strobe input for enabling or disabling the multiplexer functionality.
9. What is the operating temperature range of this component?
The operating temperature range is 0°C to 70°C, making it suitable for commercial applications.
10. Where can I find detailed technical specifications for the SN74LS151NSR?
Detailed specifications can be found in the official datasheet provided by Texas Instruments or on distributor websites like Digi-Key or Mouser.
