Overview
The SN74LS06NSRG4 is a hex inverter buffer and driver produced by Texas Instruments. This device features high-voltage, open-collector outputs, making it suitable for interfacing with high-level circuits such as MOS or for driving high-current loads. It is also characterized for use as an inverter buffer for driving TTL inputs. The SN74LS06NSRG4 is part of the 74LS series, known for its compatibility with most TTL families and its high sink-current capability.
Key Specifications
| Parameter | Test Conditions | MIN | TYP | MAX | Unit |
|---|---|---|---|---|---|
| Supply Voltage, VCC | 4.75 | 5 | 5.25 | V | |
| Input Voltage, VI | 0 | 7 | V | ||
| Output Voltage, VO | 0 | 30 | V | ||
| Absolute Maximum Junction Temperature, TJ | 150 | °C | |||
| Storage Temperature, Tstg | -65 | 150 | °C | ||
| High-Level Output Current, IOH | VCC = MIN, VIL = 0.8 V, VOH = 30 V | 0.25 | mA | ||
| Low-Level Output Current, IOL | VCC = MIN, VIH = 2 V | 16 | 30 | 40 | mA |
| Propagation Delay Time, tPLH/tPHL | RL = 110 Ω, CL = 15 pF | 7/10 | 15/20 | ns |
Key Features
- High-voltage, open-collector outputs capable of driving up to 30 V.
- High sink-current capability of up to 40 mA.
- Input clamping diodes simplify system design.
- Inputs fully compatible with most TTL circuits.
- Open-collector driver suitable for indicator lamps and relays.
- Convert TTL voltage levels to MOS levels.
Applications
- Factory automation.
- Building automation.
- Line drivers.
- Electronic point of sale systems.
- Desktop or notebook PCs.
- LED drivers and voltage translation using pull-up resistors.
Q & A
- What is the maximum output voltage for the SN74LS06NSRG4?
The maximum output voltage for the SN74LS06NSRG4 is 30 V.
- What is the high sink-current capability of the SN74LS06NSRG4?
The SN74LS06NSRG4 has a high sink-current capability of up to 40 mA.
- What type of inputs does the SN74LS06NSRG4 have?
The inputs are fully compatible with most TTL circuits and include input clamping diodes to simplify system design.
- What are some common applications for the SN74LS06NSRG4?
Common applications include factory automation, building automation, line drivers, electronic point of sale systems, and desktop or notebook PCs.
- What is the typical propagation delay time for the SN74LS06NSRG4?
The typical propagation delay time is 15 ns for tPLH and 20 ns for tPHL with RL = 110 Ω and CL = 15 pF.
- What is the storage temperature range for the SN74LS06NSRG4?
The storage temperature range is from -65°C to 150°C.

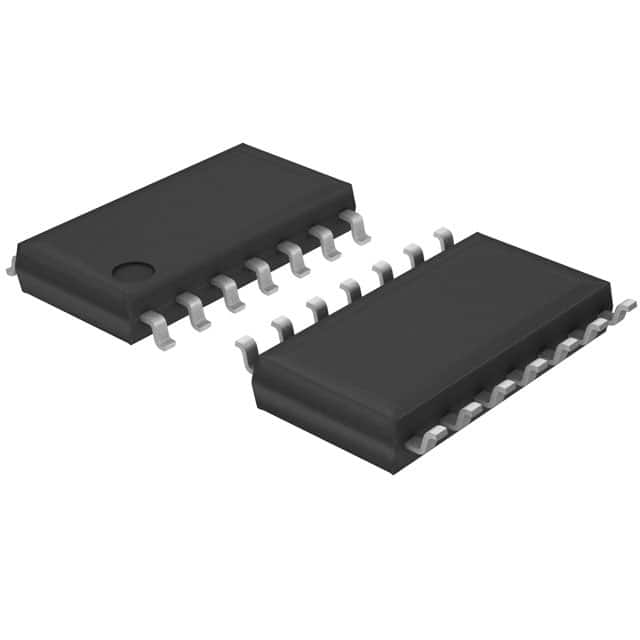

- What package types are available for the SN74LS06NSRG4?
The SN74LS06NSRG4 is available in SOP (Small Outline Package) among other package types.
- Is the SN74LS06NSRG4 RoHS compliant?
- What is the junction-to-ambient thermal resistance for the SOP package?
The junction-to-ambient thermal resistance for the SOP package is approximately 82.8°C/W.
- Can the SN74LS06NSRG4 be used for driving indicator lamps and relays?
