Overview

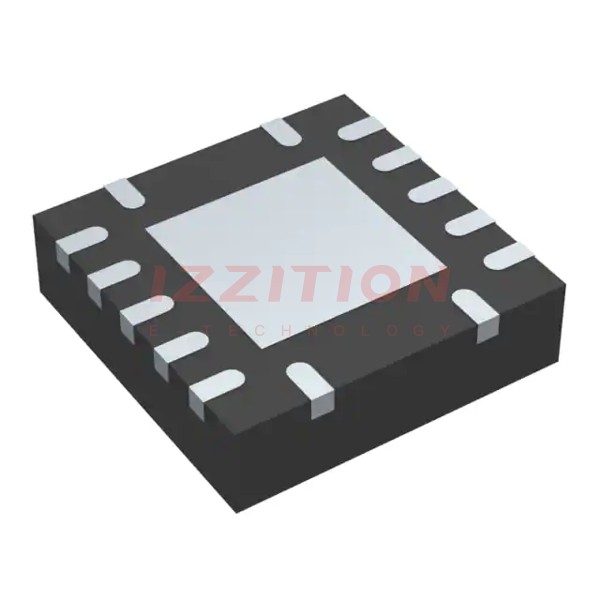

The SN74CBTLV3126RGYR is a high-performance, low-voltage quad FET bus switch manufactured by Texas Instruments. Designed for applications requiring minimal power consumption and high-speed signal switching, this component is ideal for use in portable electronics, communication systems, and industrial automation. Its compact QFN-14 package and robust design make it a reliable choice for engineers seeking efficient signal routing solutions.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Package | QFN-14 | - | Compact form factor |
| Supply Voltage | 2.3 to 3.6 | V | Low-voltage operation |
| Number of Channels | 4 | - | Quad bus switch |
| On-State Resistance | 5 | Ω | Typical value |
| Operating Temperature | -40 to 85 | °C | Wide range |
| Switching Speed | 0.25 | ns | High-speed performance |
| Power Consumption | Low | - | Energy-efficient design |
Key Features
- Low-voltage operation for energy-efficient performance.
- High-speed signal switching with minimal delay.
- Compact QFN-14 package for space-constrained applications.
- Robust design suitable for industrial and automotive environments.
- Low on-state resistance ensures minimal signal attenuation.
Applications
The SN74CBTLV3126RGYR is widely used in various industries, including portable electronics for signal routing, communication systems for high-speed data switching, and industrial automation for reliable control signal management. Its low power consumption and compact design make it particularly suitable for battery-operated devices and space-constrained applications.
Q & A
What is the operating voltage range of SN74CBTLV3126RGYR?
The operating voltage range is 2.3V to 3.6V.
What is the typical on-state resistance?
The typical on-state resistance is 5Ω.
What package does this component use?
It uses a QFN-14 package.
What is the switching speed of this bus switch?
The switching speed is 0.25ns.
Is this component suitable for automotive applications?
Yes, its robust design makes it suitable for automotive environments.
What is the operating temperature range?
The operating temperature range is -40°C to 85°C.
How many channels does this bus switch have?
It has 4 channels.
Is this component energy-efficient?
Yes, it is designed for low power consumption.
Can it be used in portable electronics?
Yes, its low-voltage operation and compact design make it ideal for portable electronics.
What industries commonly use this component?
It is commonly used in portable electronics, communication systems, and industrial automation.
